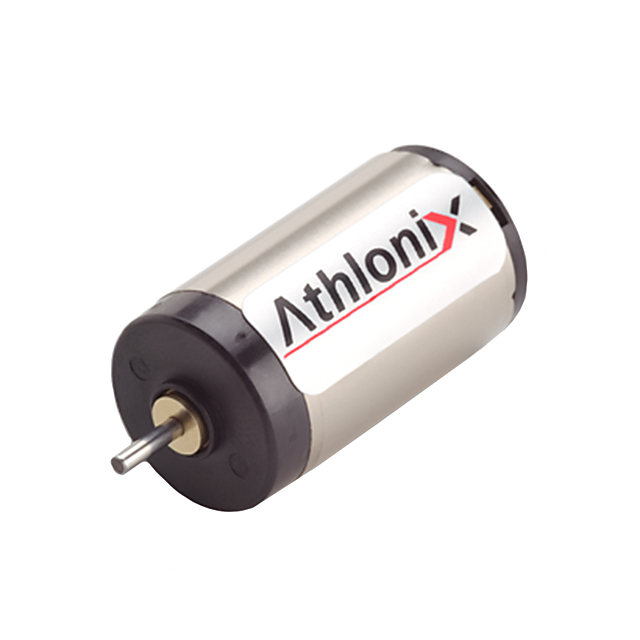

16N78-210E.1001
ActivePortescap
STANDARD MOTOR 10000 RPM 18V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16N78-210E.1001
ActivePortescap
STANDARD MOTOR 10000 RPM 18V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 16N78-210E.1001 | 16N78 Series |
|---|---|---|
| Diameter - Shaft [diameter] | 0.059 in | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm | 1.5 mm |
| Function | Standard | Standard |
| Length - Shaft and Bearing | 7.5 mm | 7.5 mm |
| Length - Shaft and Bearing [x] | 0.295 in | 0.295 in |
| Motor Type | Brushed | Brushed |
| Mounting Hole Spacing | 9 mm | 9 mm |
| Mounting Hole Spacing | 0.354 in | 0.354 in |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Power - Rated | 4.9 W | 4.9 - 5.4 W |
| RPM | 10000 RPM | 10000 RPM |
| Size / Dimension | Round | Round |
| Size / Dimension [diameter] | 16 mm | 16 mm |
| Size / Dimension [diameter] | 0.629 " | 0.629 " |
| Termination Style | Solder Tab | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.878 oz-in | 0.878 - 0.977 oz-in |
| Torque - Rated (oz-in / mNm) | 6.2 mNm | 6.2 - 6.9 mNm |
| Type | DC Motor | DC Motor |
| Voltage - Rated | 18 VDC | 6 - 18 VDC |
| Weight | 24.04 g | 24.04 g |
| Weight | 0.053 lb | 0.053 lb |
16N78 Series
STANDARD MOTOR 10000 RPM 6V
| Part | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Motor Type | RPM | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Weight | Weight | Voltage - Rated | Power - Rated | Mounting Hole Spacing | Mounting Hole Spacing | Function | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Portescap 16N78-212P.1001 | Solder Tab | -30 ░C | 85 °C | Brushed | 10000 RPM | 7.5 mm | 0.295 in | 16 mm | Round | 0.629 " | 24.04 g | 0.053 lb | 6 VDC | 5.4 W | 9 mm | 0.354 in | Standard | 0.059 in | 1.5 mm | 0.977 oz-in | 6.9 mNm | DC Motor |
Portescap 16N78-212E.1001 | Solder Tab | -30 ░C | 85 °C | Brushed | 10000 RPM | 7.5 mm | 0.295 in | 16 mm | Round | 0.629 " | 24.04 g | 0.053 lb | 12 VDC | 5.2 W | 9 mm | 0.354 in | Standard | 0.059 in | 1.5 mm | 0.94 oz-in | 6.6 mNm | DC Motor |
Portescap 16N78-210E.1001 | Solder Tab | -30 ░C | 85 °C | Brushed | 10000 RPM | 7.5 mm | 0.295 in | 16 mm | Round | 0.629 " | 24.04 g | 0.053 lb | 18 VDC | 4.9 W | 9 mm | 0.354 in | Standard | 0.059 in | 1.5 mm | 0.878 oz-in | 6.2 mNm | DC Motor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 91.08 | |
Description
General part information
16N78 Series
Brushed DC Motor Standard 10000 RPM 4.9W 18VDC
