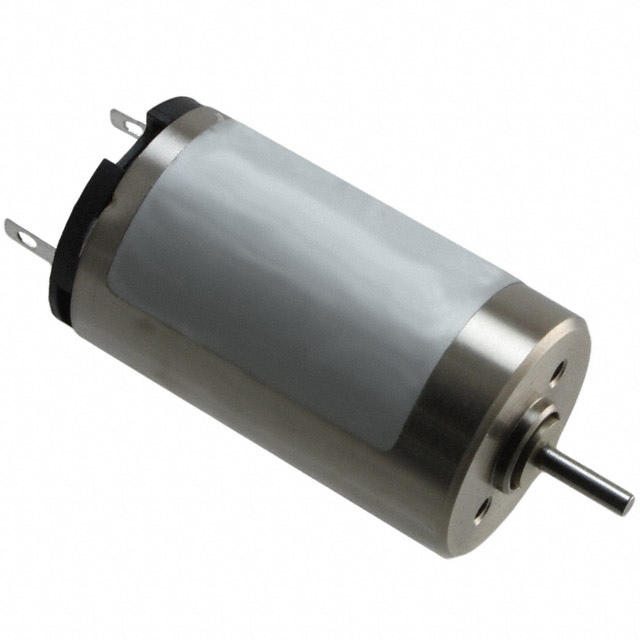

16N78-212P.1001

Active

Portescap

STANDARD MOTOR 10000 RPM 6V

Search across all available documentation for this part.

Active

Portescap

STANDARD MOTOR 10000 RPM 6V

Technical Specifications

Parameters and characteristics commom to parts in this series

STANDARD MOTOR 10000 RPM 6V

Part	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type	RPM	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Weight	Weight	Voltage - Rated	Power - Rated	Mounting Hole Spacing	Mounting Hole Spacing	Function	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Type
Portescap 16N78-212P.1001	Solder Tab	-30 ░C	85 °C	Brushed	10000 RPM	7.5 mm	0.295 in	16 mm	Round	0.629 "	24.04 g	0.053 lb	6 VDC	5.4 W	9 mm	0.354 in	Standard	0.059 in	1.5 mm	0.977 oz-in	6.9 mNm	DC Motor
Portescap 16N78-212E.1001	Solder Tab	-30 ░C	85 °C	Brushed	10000 RPM	7.5 mm	0.295 in	16 mm	Round	0.629 "	24.04 g	0.053 lb	12 VDC	5.2 W	9 mm	0.354 in	Standard	0.059 in	1.5 mm	0.94 oz-in	6.6 mNm	DC Motor
Portescap 16N78-210E.1001	Solder Tab	-30 ░C	85 °C	Brushed	10000 RPM	7.5 mm	0.295 in	16 mm	Round	0.629 "	24.04 g	0.053 lb	18 VDC	4.9 W	9 mm	0.354 in	Standard	0.059 in	1.5 mm	0.878 oz-in	6.2 mNm	DC Motor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Standard 10000 RPM 5.4W 6VDC
