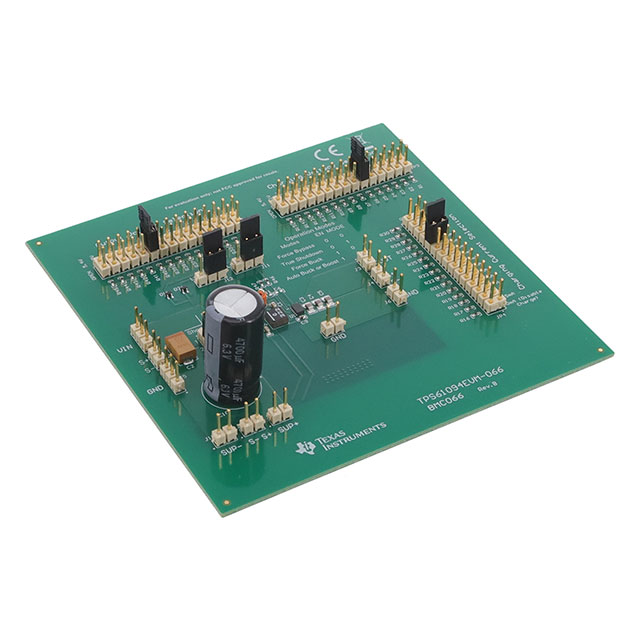

TPS61094EVM-066
ActiveTexas Instruments
EVAL BOARD FOR TPS61094
TPS61094EVM-066
ActiveTexas Instruments
EVAL BOARD FOR TPS61094
Description
General part information
TPS61094EVM-066
TPS61094 - DC/DC, Step Up or Down 2, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS61094EVM-066 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output (Max) | 500 mA |
| Current - Output (Min) | 250 mA |
| Frequency - Switching | 1 MHz |
| Main Purpose | Step Up or Down, DC/DC |
| Non-Isolated Output Count | 2 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck-Boost |
| Supplied Contents | Board(s) |
| Total Output Count | 2 |
| Utilized IC / Part | TPS61094 |
| Voltage - Input (Maximum) | 5.5 V |
| Voltage - Input (Minimum) | 0.7 V |
| Voltage - Output (Max) | 5.4 V |
| Voltage - Output (Min) | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
