EGG.3P.306.PLWG

Active

LEMO

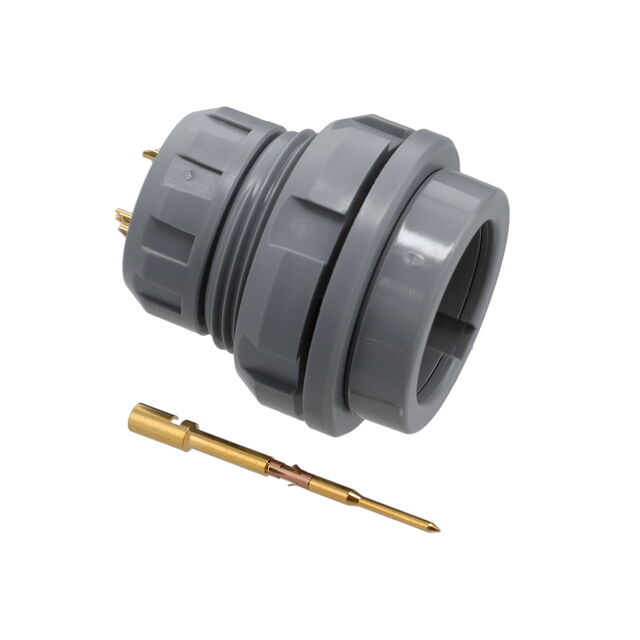

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.3P.306.PLWG

Active

LEMO

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.82
		10	$ 37.02
		25	$ 33.59
		50	$ 31.27
		100	$ 29.18
		250	$ 26.71

Description

General part information

EGG.3P Series

7 (6 + PE) Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.3P.306.PLWG	EGG.3P Series

Color	Gray	Gray, Yellow, Green, Blue, Brown, Black, White
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	-	Gold
Contact Finish - Mating	Gold	Gold
Contact Size	-	0.9 mm
Contact Termination	-	Crimp
Current Rating (Amps)	6 A	4 - 9 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Ground	Ground
Ingress Protection	IP61 - Dust Tight	IP61 - Dust Tight
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	-	1
Number of Positions	-	1
Number of Positions	-	6 - 11
Number of Positions [custom]	1	1
Number of Positions [custom]	6	6 - 9
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU)
Shell Size - Insert	306	33 - 310
Termination	-	Solder, Crimp
Type	-	Signal

EGG.3P Series

CIRCULAR PUSH PULL CONNECTORS FIXED RECEPTACLE NUT FIXING

Part	Color	Contact Finish - Mating	Shell Material	Connector Type	Fastening Type	Ingress Protection	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Insert Material	Current Rating (Amps)	Mounting Feature	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Features	Mounting Type	Termination	Number of Positions	Shell Size - Insert	Number of Positions [custom]
LEMO EGG.3P.809.PLW2	Gray	Gold	Polysulfone (PSU)	Receptacle, Female Sockets	Detent Lock, Push-Pull	IP61 - Dust Tight	Plastic	150 °C	-50 °C	Keyed	Polyetheretherketone (PEEK)	4 A	Bulkhead - Rear Side Nut	1	1	9	Ground
LEMO EGG.3P.310.PLNJ	Gray, Yellow	Gold	Polysulfone (PSU)	Receptacle, Female Sockets	Detent Lock, Push-Pull	IP61 - Dust Tight	Plastic	150 °C	-50 °C	Keyed	Polyetheretherketone (PEEK)	5 A	Bulkhead - Rear Side Nut				Ground	Panel Mount, Through Hole	Solder	11	310
LEMO EGG.3P.310.PLWJ	Gray, Yellow	Gold	Polysulfone (PSU)	Receptacle, Female Sockets	Detent Lock, Push-Pull	IP61 - Dust Tight	Plastic	150 °C	-50 °C	Keyed	Polyetheretherketone (PEEK)	5 A	Bulkhead - Rear Side Nut				Ground			11	310
LEMO EGG.3P.310.PLNN		Gold	Polysulfone (PSU)	Receptacle, Female Sockets	Detent Lock, Push-Pull	IP61 - Dust Tight	Plastic	150 °C	-50 °C	Keyed	Polyetheretherketone (PEEK)	5 A	Bulkhead - Rear Side Nut				Ground	Panel Mount, Through Hole	Solder	11	310
LEMO EGG.3P.306.PLWG	Gray	Gold	Polysulfone (PSU)	Receptacle, Female Sockets	Detent Lock, Push-Pull	IP61 - Dust Tight	Plastic	150 °C	-50 °C	Keyed	Polyetheretherketone (PEEK)	6 A	Bulkhead - Rear Side Nut			6	Ground				306	1
LEMO EGG.3P.310.PLNV	Gray, Green	Gold	Polysulfone (PSU)	Receptacle, Female Sockets	Detent Lock, Push-Pull	IP61 - Dust Tight	Plastic	150 °C	-50 °C	Keyed	Polyetheretherketone (PEEK)	5 A	Bulkhead - Rear Side Nut				Ground	Panel Mount, Through Hole	Solder	11	310
LEMO EGG.3P.310.PLNG	Gray	Gold	Polysulfone (PSU)	Receptacle, Female Sockets	Detent Lock, Push-Pull	IP61 - Dust Tight	Plastic	150 °C	-50 °C	Keyed	Polyetheretherketone (PEEK)	5 A	Bulkhead - Rear Side Nut				Ground	Panel Mount, Through Hole	Solder	11	310
LEMO EGG.3P.306.PLWA	Blue, Gray	Gold	Polysulfone (PSU)	Receptacle, Female Sockets	Detent Lock, Push-Pull	IP61 - Dust Tight	Plastic	150 °C	-50 °C	Keyed	Polyetheretherketone (PEEK)	6 A	Bulkhead - Rear Side Nut			6	Ground				306	1
LEMO EGG.3P.310.PLWG	Gray	Gold	Polysulfone (PSU)	Receptacle, Female Sockets	Detent Lock, Push-Pull	IP61 - Dust Tight	Plastic	150 °C	-50 °C	Keyed	Polyetheretherketone (PEEK)	5 A	Bulkhead - Rear Side Nut				Ground			11	310
LEMO EGG.3P.306.PLWN		Gold	Polysulfone (PSU)	Receptacle, Female Sockets	Detent Lock, Push-Pull	IP61 - Dust Tight	Plastic	150 °C	-50 °C	Keyed	Polyetheretherketone (PEEK)	6 A	Bulkhead - Rear Side Nut			6	Ground				306	1
