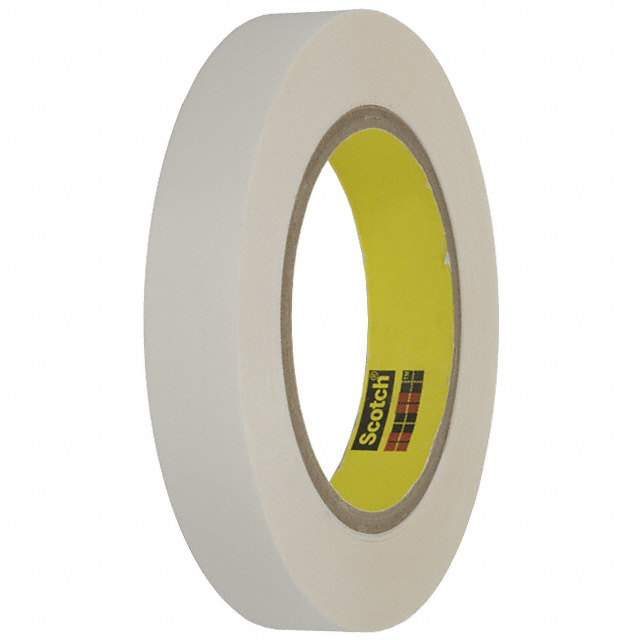

5414 TRANSPARENT 3/4IN
Active3M (TC)
TAPE MASKING/WATER CLR 3/4"X36YD
Deep-Dive with AI
Search across all available documentation for this part.
5414 TRANSPARENT 3/4IN
Active3M (TC)
TAPE MASKING/WATER CLR 3/4"X36YD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5414 TRANSPARENT 3/4IN |
|---|---|
| Adhesive | Synthetic |
| Backing, Carrier | PVA (Poly Vinyl Acetate) |
| Color | Clear |
| Length | 36 yd |
| Length | 32.9 m |
| Length | 108 ft |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature | 70 °F |
| Storage/Refrigeration Temperature | 21 °C |
| Tape Type | Masking, Water Soluble |
| Temperature Range [Max] | 240 °C |
| Temperature Range [Max] | 464 °F |
| Temperature Range [Min] | -40 °C |
| Temperature Range [Min] | -40 °F |
| Thickness | 2.1 mils |
| Thickness | 0.053 mm |
| Thickness | 0.0021 in |
| Thickness - Adhesive [custom] | 0.021 mm |
| Thickness - Adhesive [custom] | 0.0008 " |
| Thickness - Adhesive [custom] | 0.8 mils |
| Thickness - Backing, Carrier | 0.0013 " |
| Thickness - Backing, Carrier | 0.033 mm |
| Thickness - Backing, Carrier | 1.3 mils |
| Usage | Wave Soldering |
| Width | 0.75 in |
| Width | 19.05 mm |
| Width | 0.75 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 82.89 | |
| 12 | $ 77.71 | |||
| 36 | $ 72.53 | |||
| 60 | $ 68.90 | |||
Description
General part information
5414 Series
Masking, Water Soluble Tape Synthetic Adhesive Clear 0.75" (19.05mm) 3/4" X 108' (32.9m) 36 yds
