7129W 0031000

Active

Belden Inc.

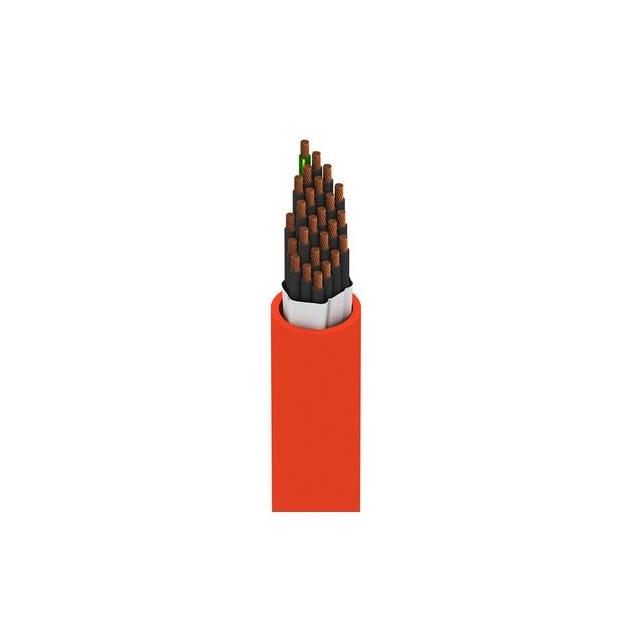

CABLE 25COND 16AWG ORANGE

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 25COND 16AWG ORANGE

Technical Specifications

Parameters and characteristics for this part

Specification	7129W 0031000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	38
Conductor Strand [custom]	190
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	20.32 mm
Jacket (Insulation) Diameter [diameter]	0.8 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Orange
Length	1000 ft
Length	304.8 m
Number of Conductors	25
Ratings	UL Style 20328
Wire Gauge	16 AWG

Part	Length	Length	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Features	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 7129W 0031000	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	16 AWG	Orange	Oil Resistant UV Resistant	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	1.6 mm	0.063 in	Copper Bare	25	20.32 mm	0.8 in	UL Style 20328	Multi-Conductor	38	190

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 36.37

General part information

25 Conductor Multi-Conductor Cable Orange 16 AWG 1000.0' (304.8m)
