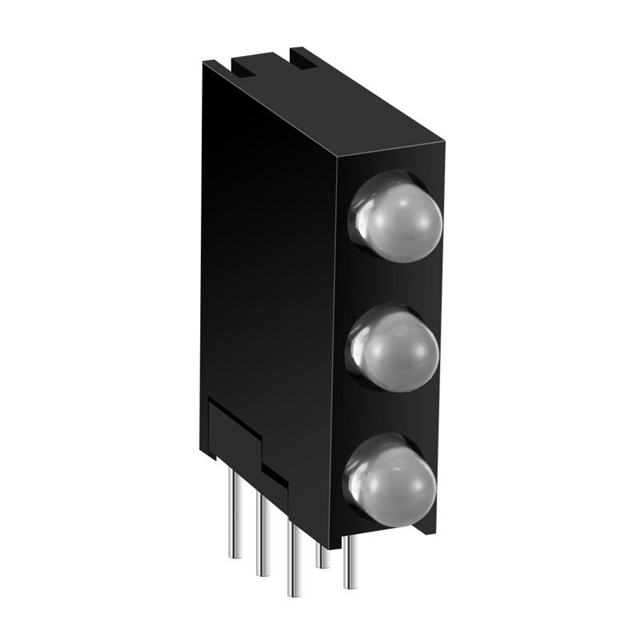

XPZ3LUGR37M
ActiveSunLED
LED CBI 2.9MM TRI GRN/RED RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XPZ3LUGR37M
ActiveSunLED
LED CBI 2.9MM TRI GRN/RED RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XPZ3LUGR37M |
|---|---|
| Color | Red, Green |
| Configuration | 3 Wide |
| Current | 20 mA, 20 mA |
| Lens Size [diameter] | 2.9 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused, White |
| Millicandela Rating | 13 mcd, 13 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 2.2 V, 2 V |
| Wavelength - Peak | 565 nm, 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.49 | |
| 10 | $ 1.63 | |||
| 100 | $ 1.19 | |||
| 125 | $ 1.26 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.96 | |||
| 2000 | $ 0.92 | |||
| 5000 | $ 0.87 | |||
| 10000 | $ 0.84 | |||
Description
General part information
XPZ3LUGR37 Series
LED Circuit Board Indicator LED Circuit Board Indicator 3 Wide Green, Red Diffused, White 2.2V Green, 2V Red 20mA Green, 20mA Red Round with Domed Top 2.90mm Dia Through Hole, Right Angle
