MAX98306EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVAL FOR MAX98306
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMAX98306
MAX98306EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVAL FOR MAX98306
Deep-Dive with AI
DocumentsMAX98306
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX98306EVKIT# | MAX98306 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Features | - | Short-Circuit and Thermal Protection, Differential Inputs, Depop, Shutdown |
| Max Output Power x Channels @ Load | 2 channels, 3.2 W | 2 - 3.7 W |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | 2-Channel (Stereo) | 2-Channel (Stereo) |
| Package / Case | - | 14-WFDFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 14-TDFN (3x3) |
| Type | - | Class D |
| Utilized IC / Part | MAX98306 | MAX98306 |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 2.6 V | 2.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 82.64 | |
MAX98306 Series
IC AMP CLASS D STER 3.7W 14TDFN
| Part | Max Output Power x Channels @ Load | Mounting Type | Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Type | Package / Case | Features | Utilized IC / Part | Board Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX98306ETD+T | 2 channels, 3.7 W | Surface Mount | Class D | 14-TDFN (3x3) | 85 °C | -40 °C | 5.5 V | 2.6 V | 2-Channel (Stereo) | 14-WFDFN Exposed Pad | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | |||
Analog Devices Inc./Maxim Integrated MAX98306EVKIT# | 2 channels, 3.2 W | 5.5 V | 2.6 V | 2-Channel (Stereo) | MAX98306 | Fully Populated | Board(s) |
Description
General part information
MAX98306 Series

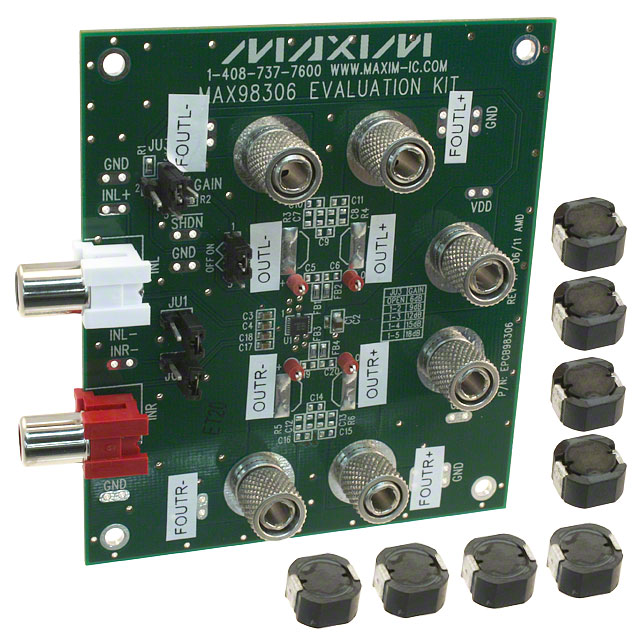

MAX98306 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
