K61X-E15S-N30

Active

Kycon, Inc.

CONN D-SUB HD RCPT 15P R/A SLDR

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN D-SUB HD RCPT 15P R/A SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	3150	$ 4.46

General part information

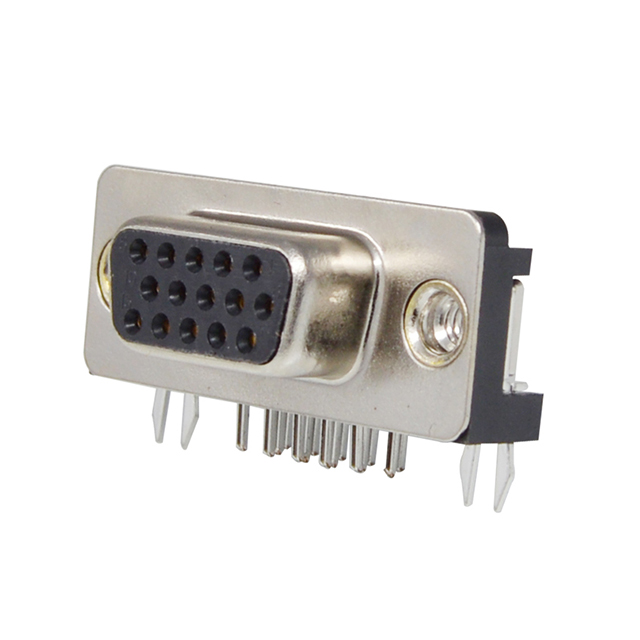

15 Position D-Sub, High Density Receptacle, Female Sockets Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	K61X-E15S-N30	K61X-E15 Series

Color	Black	Blue, Black
Connector Style	High Density, D-Sub	High Density, D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	2 A	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (4-40)	Female Screwlock (4-40), Mating Side, Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	15	15
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Shell Size, Connector Layout [custom]	High Density	High Density
Termination	Solder	Solder
Voltage Rating	30 VDC	30 VDC

CONN D-SUB HD RCPT 15P R/A SLDR

Part	Voltage Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Dielectric Material	Contact Finish	Mounting Type	Color	Contact Type	Connector Type	Connector Style	Material Flammability Rating	Number of Rows	Contact Material	Flange Feature	Current Rating (Amps)	Termination	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Kycon, Inc. K61X-E15S-NJ30VESA	30 VDC	15	105 ░C	-55 °C	Nickel Plated, Steel	Polybutylene Terephthalate (PBT)	Gold	Through Hole, Right Angle	Blue	Signal	Receptacle, Female Sockets	D-Sub, High Density	UL94 V-0	3	Phosphor Bronze	Female Screwlock (4-40), Mating Side	2 A	Solder	0.76 Ám	30 Áin	DE, E	1	High Density
Kycon, Inc. K61X-E15S-N30	30 VDC	15	105 ░C	-55 °C	Nickel Plated, Steel	Polybutylene Terephthalate (PBT)	Gold	Through Hole, Right Angle	Black	Signal	Receptacle, Female Sockets	D-Sub, High Density	UL94 V-0	3	Phosphor Bronze	Housing/Shell (4-40)	2 A	Solder	0.76 Ám	30 Áin	DE, E	1	High Density
