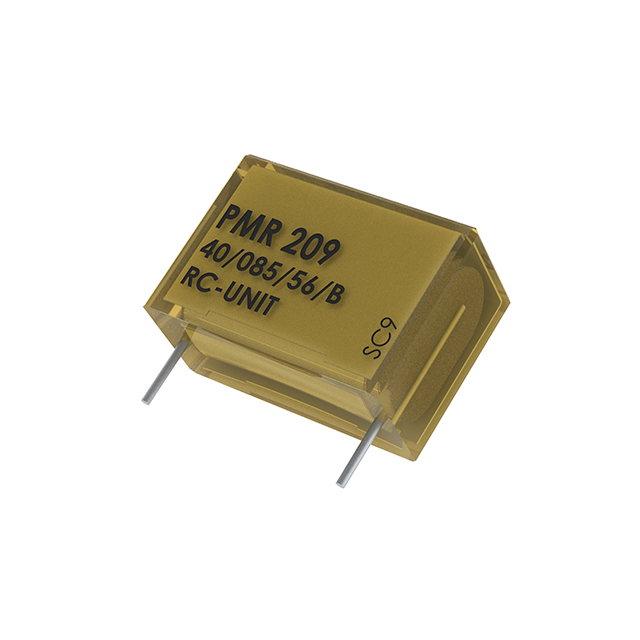

PMR209ME6220M470R30

Active

KEMET

CAP RC NETWORK 0.22UF 630V 20% 470 OHM 30% 0.5 (1/2)W 1R/1C 85°C BAG

Search across all available documentation for this part.

Active

KEMET

CAP RC NETWORK 0.22UF 630V 20% 470 OHM 30% 0.5 (1/2)W 1R/1C 85°C BAG

Technical Specifications

Parameters and characteristics for this part

Part	Dielectric Material	Ratings	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Voltage Rating - AC	Capacitance	Applications	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]
KEMET PMR209ME6220M470R30	Paper Metallized	X2	PC Pins	22 mm	0.866 in	Through Hole	Radial	1.201 in	0.602 in	30.5 mm	15.3 mm	25.4 mm	1 in	250 V	0.22 µF	EMI RFI Suppression	20 %	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.22 µF Film Capacitor 250V 630V Paper, Metallized Radial
