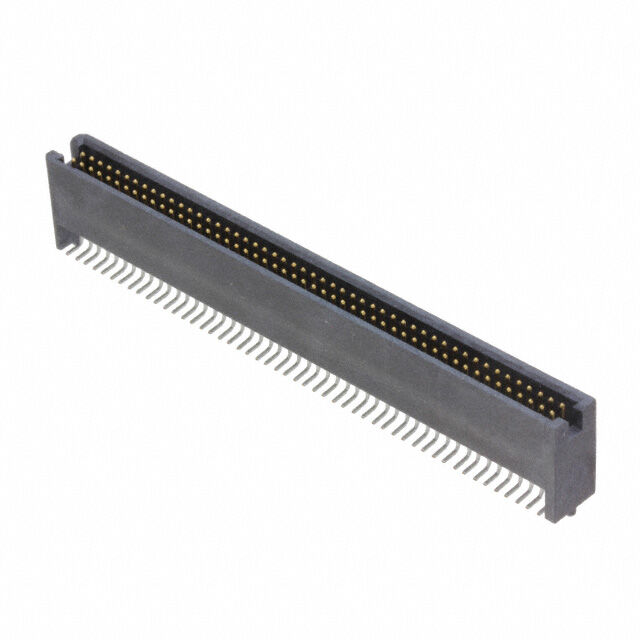

TFC-150-32-F-D-A

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFSD Series Other Related Documents 03 Datasheet +2

TFC-150-32-F-D-A

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

DocumentsSFSD Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFC-150-32-F-D-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	0.139 in
Contact Length - Mating	3.53 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.441 "
Insulation Height	11.2 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	100
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC

TFC-150 Series

Part	Shrouding	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Post	Style	Material Flammability Rating	Number of Positions	Insulation Material	Fastening Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Shape	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Mounting Type	Contact Type	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]
Samtec Inc. TFC-150-02-L-D	Shrouded - 4 Wall	Solder	2	0.05 in	1.27 mm	Black	Tin	Board to Board Cable	UL94 V-0	100	Liquid Crystal Polymer (LCP)	Push-Pull	3.33 mm	0.131 in	All	Square	Phosphor Bronze	3.1 A	-55 °C	125 °C	Header	Gold	10 çin	0.25 çm	275 VAC	Surface Mount	Male Pin	0.226 in	5.74 mm	0.05 in	1.27 mm
Samtec Inc. TFC-150-22-F-D-A-K-TR	Shrouded - 4 Wall	Solder	2	0.05 in	1.27 mm	Black	Tin	Board to Board Cable	UL94 V-0	100	Liquid Crystal Polymer (LCP)	Push-Pull	3.53 mm	0.139 in	All	Square	Phosphor Bronze	3.1 A	-55 °C	125 °C	Header	Gold	3 µin	0.076 µm	275 VAC	Surface Mount	Male Pin	0.366 in	9.3 mm	0.05 in	1.27 mm	Board Guide Pick and Place
Samtec Inc. TFC-150-32-L-D-A-K	Shrouded - 4 Wall	Solder	2	0.05 in	1.27 mm	Black	Tin	Board to Board Cable	UL94 V-0	100	Liquid Crystal Polymer (LCP)	Push-Pull	3.53 mm	0.139 in	All	Square	Phosphor Bronze	3.1 A	-55 °C	125 °C	Header	Gold	10 çin	0.25 çm	275 VAC	Surface Mount	Male Pin	0.441 "	11.2 mm	0.05 in	1.27 mm	Board Guide Pick and Place
Samtec Inc. TFC-150-22-L-D-LC	Shrouded - 4 Wall	Solder	2	0.05 in	1.27 mm	Black	Tin	Board to Board Cable	UL94 V-0	100	Liquid Crystal Polymer (LCP)	Push-Pull	3.53 mm	0.139 in	All	Square	Phosphor Bronze	3.1 A	-55 °C	125 °C	Header	Gold	10 çin	0.25 çm	275 VAC	Surface Mount	Male Pin	0.366 in	9.3 mm	0.05 in	1.27 mm
Samtec Inc. TFC-150-02-F-D-A-K	Shrouded - 4 Wall	Solder	2	0.05 in	1.27 mm	Black	Tin	Board to Board Cable	UL94 V-0	100	Liquid Crystal Polymer (LCP)	Push-Pull	3.33 mm	0.131 in	All	Square	Phosphor Bronze	3.1 A	-55 °C	125 °C	Header	Gold	3 µin	0.076 µm	275 VAC	Surface Mount	Male Pin	0.226 in	5.74 mm	0.05 in	1.27 mm	Board Guide Pick and Place
Samtec Inc. TFC-150-12-F-D-K	Shrouded - 4 Wall	Solder	2	0.05 in	1.27 mm	Black	Tin	Board to Board Cable	UL94 V-0	100	Liquid Crystal Polymer (LCP)	Push-Pull	3.53 mm	0.139 in	All	Square	Phosphor Bronze	3.1 A	-55 °C	125 °C	Header	Gold	3 µin	0.076 µm	275 VAC	Surface Mount	Male Pin	0.296 in	7.52 mm	0.05 in	1.27 mm	Pick and Place
Samtec Inc. TFC-150-32-F-D-A	Shrouded - 4 Wall	Solder	2	0.05 in	1.27 mm	Black	Tin	Board to Board Cable	UL94 V-0	100	Liquid Crystal Polymer (LCP)	Push-Pull	3.53 mm	0.139 in	All	Square	Phosphor Bronze	3.1 A	-55 °C	125 °C	Header	Gold	3 µin	0.076 µm	350 VAC	Surface Mount	Male Pin	0.441 "	11.2 mm	0.05 in	1.27 mm	Board Guide
Samtec Inc. TFC-150-21-L-D-A	Shrouded - 4 Wall	Solder	2	0.05 in	1.27 mm	Black	Tin	Board to Board Cable	UL94 V-0	100	Liquid Crystal Polymer (LCP)	Push-Pull	3.53 mm	0.139 in	All	Square	Phosphor Bronze	3.1 A	-55 °C	125 °C	Header	Gold	10 çin	0.25 çm	275 VAC 350 VAC	Through Hole	Male Pin	0.29 in	7.37 mm	0.05 in	1.27 mm	Board Guide	2.03 mm	0.08 in
Samtec Inc. TFC-150-12-L-D-A	Shrouded - 4 Wall	Solder	2	0.05 in	1.27 mm	Black	Tin	Board to Board Cable	UL94 V-0	100	Liquid Crystal Polymer (LCP)	Push-Pull	3.53 mm	0.139 in	All	Square	Phosphor Bronze	3.1 A	-55 °C	125 °C	Header	Gold	10 çin	0.25 çm	275 VAC	Surface Mount	Male Pin	0.296 in	7.52 mm	0.05 in	1.27 mm	Board Guide
Samtec Inc. TFC-150-01-F-D-RA	Shrouded - 4 Wall	Solder	2	0.05 in	1.27 mm	Black	Tin	Board to Board Cable	UL94 V-0	100	Liquid Crystal Polymer (LCP)	Push-Pull	3.61 mm	0.142 in	All	Square	Phosphor Bronze	3.1 A	-55 °C	125 °C	Header	Gold	3 µin	0.076 µm	350 VAC	Through Hole Right Angle	Male Pin	0.22 in	5.6 mm	0.05 in	1.27 mm		1.91 mm		0.075 in
