FGN.1F.305.XLC

Active

LEMO

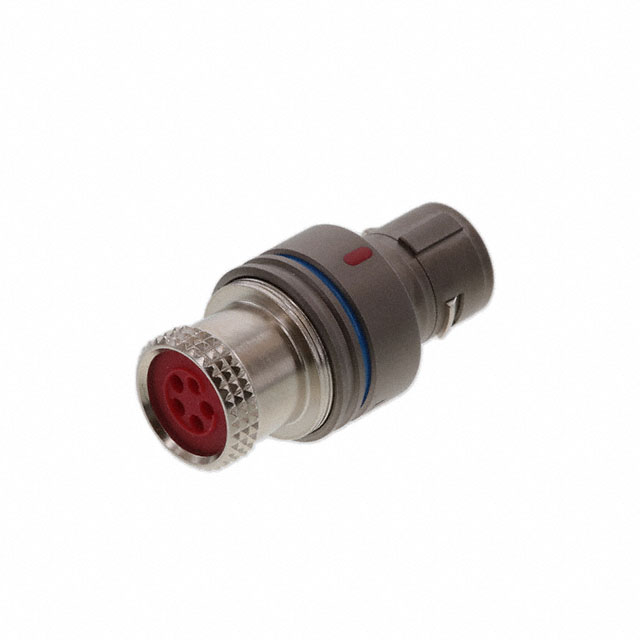

CONN PLUG MALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGN.1F.305.XLC

Active

LEMO

CONN PLUG MALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 64.78
		10	$ 59.45
		25	$ 57.16
		50	$ 55.26
		100	$ 52.21

Description

General part information

FGN.1F Series

5 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGN.1F.305.XLC	FGN.1F Series

	-	-
Applications	Aerospace	Aerospace
Cable Opening [custom]	0.421 in	0.421 in
Cable Opening [custom]	10.7 mm	10.7 mm
Color	Gray	Gray, Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	9 A	5 - 12 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	7 - 8
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-15 °C	-55 - -15 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Aluminum Alloy	Aluminum Alloy, Brass
Shell Size - Insert	305	303 - 308
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FGN.1F Series

CONTACT PIN CRIMP 1.3MM

Part	Number of Positions	Material Flammability Rating	Fastening Type	Mounting Type	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insert Material	Ingress Protection	Applications	Termination	Shell Finish	Orientation	Shell Material	Shielding	Connector Type	Contact Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]
LEMO FGN.1F.565.ZZC
LEMO FGN.1F.307.YLC	7	UL94 V-0	Push-Pull	Free Hanging (In-Line)	Gold	0.421 in	10.7 mm	307	Gray	1 µm	39.4 µin	7 A	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Aerospace	Crimp	Nickel	N	Aluminum Alloy	Shielded	Male Pins, Plug	Brass	Metal	200 °C	-15 °C
LEMO FGN.1F.308.XLCF	8	UL94 V-0	Push-Pull	Free Hanging (In-Line)	Gold	0.421 in	10.7 mm	308	Gray	1 µm	39.4 µin	5 A	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Aerospace	Crimp	Nickel	N	Aluminum Alloy	Shielded	Male Pins, Plug	Brass	Metal	200 °C	-15 °C
LEMO FGN.1F.305.YLC		UL94 V-0	Push-Pull	Free Hanging (In-Line)	Gold	0.421 in	10.7 mm	305	Gray	1 µm	39.4 µin	9 A	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Aerospace	Crimp	Nickel	N	Aluminum Alloy	Shielded	Male Pins, Plug	Brass	Metal	200 °C	-15 °C
LEMO FGN.1F.308.YLC	8	UL94 V-0	Push-Pull	Free Hanging (In-Line)	Gold	0.421 in	10.7 mm	308	Gray	1 µm	39.4 µin	5 A	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Aerospace	Crimp	Nickel	N	Aluminum Alloy	Shielded	Male Pins, Plug	Brass	Metal	200 °C	-15 °C
LEMO FGN.1F.308.XLBS	8	UL94 V-0	Push-Pull	Free Hanging (In-Line)	Gold	0.421 in	10.7 mm	308	Gray	1 µm	39.4 µin	5 A	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Aerospace	Crimp	Nickel	N	Aluminum Alloy	Shielded	Male Pins, Plug	Brass	Metal	200 °C	-15 °C
LEMO FGN.1F.305.XLC		UL94 V-0	Push-Pull	Free Hanging (In-Line)	Gold	0.421 in	10.7 mm	305	Gray	1 µm	39.4 µin	9 A	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Aerospace	Crimp	Nickel	N	Aluminum Alloy	Shielded	Male Pins, Plug	Brass	Metal	200 °C	-15 °C
LEMO FGN.1F.307.CLC	7	UL94 V-0	Push-Pull	Free Hanging (In-Line)	Gold	0.421 in	10.7 mm	307	Silver	1 µm	39.4 µin	7 A	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Aerospace	Crimp	Chrome	N	Brass	Shielded	Male Pins, Plug	Brass	Metal	200 °C	-55 °C
LEMO FGN.1F.303.XLC		UL94 V-0	Push-Pull	Free Hanging (In-Line)	Gold	0.421 in	10.7 mm	303	Gray	1 µm	39.4 µin	12 A	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Aerospace	Crimp	Nickel	N	Aluminum Alloy	Shielded	Male Pins, Plug	Brass	Metal	200 °C	-15 °C
LEMO FGN.1F.308.XLC	8	UL94 V-0	Push-Pull	Free Hanging (In-Line)	Gold	0.421 in	10.7 mm	308	Gray	1 µm	39.4 µin	5 A	Polyetheretherketone (PEEK)	IP67 - Dust Tight, Waterproof	Aerospace	Crimp	Nickel	N	Aluminum Alloy	Shielded	Male Pins, Plug	Brass	Metal	200 °C	-15 °C
