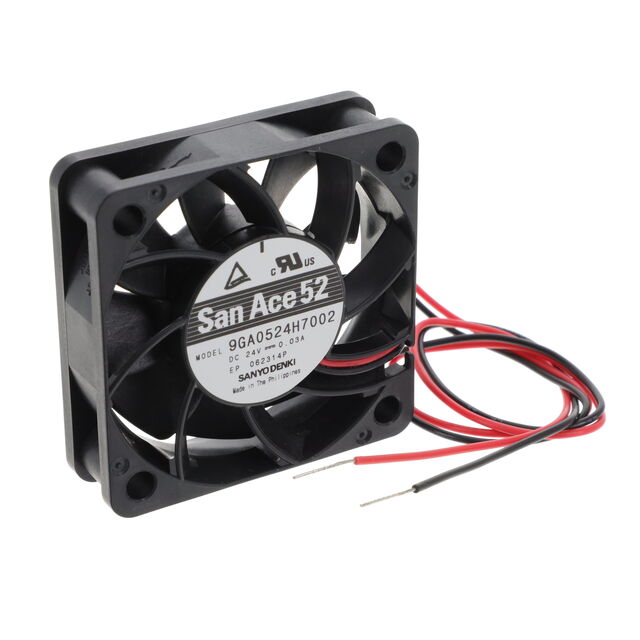

9GA0524H7002
ActiveSanyo Denki America Inc.
FAN AXIAL 52X15MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9GA0524H7002
ActiveSanyo Denki America Inc.
FAN AXIAL 52X15MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9GA0524H7002 |
|---|---|
| Air Flow | 0.272 m³/min |
| Air Flow | 9.7 CFM |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 30 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 22 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 720 mW |
| RPM | 4300 RPM |
| Size / Dimension [x] | 52 mm |
| Size / Dimension [z] | 52 mm |
| Static Pressure | 0.11 in H2O |
| Static Pressure | 27.4 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 0.089 lb |
| Weight | 40.37 g |
| Width [x] | 15 mm |
9GA0524 Series
| Part | Termination | Current Rating (Amps) | Approval Agency | Bearing Type | Power (Watts) | Material - Blade | Weight | Weight | Material - Frame | Size / Dimension [x] | Size / Dimension [z] | Lifetime @ Temp. | Static Pressure | Static Pressure | Noise | Voltage - Rated | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Width [x] | RPM | Air Flow | Air Flow | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sanyo Denki America Inc. | 2 Wire Leads | 30 mA | CSA TUV UL | Ball | 720 mW | Plastic | 0.089 lb | 40.37 g | Plastic | 52 mm | 52 mm | 40000 Hrs | 0.11 in H2O | 27.4 Pa | 22 dB(A) | 24 VDC | Tubeaxial | -20 °C | 70 °C | -20 C | 70 °C | 15 mm | 4300 RPM | 0.272 m³/min | 9.7 CFM | |
Sanyo Denki America Inc. | 3 Wire Leads | 20 mA | CSA TUV UL | Ball | 0.48 W | Plastic | 0.089 lb | 40.37 g | Plastic | 52 mm | 52 mm | 40000 Hrs | 0.068 in H2O | 17 Pa | 16 dB | 24 VDC | Tubeaxial | -20 °C | 70 °C | -20 C | 70 °C | 15 mm | 3400 RPM | 0.213 mł/min | 7.6 CFM | Locked Rotor Protection Speed Sensor (Tach) |
Sanyo Denki America Inc. | 3 Wire Leads | 70 mA | CSA TUV UL | Ball | 1.68 W | Plastic | 0.089 lb | 40.37 g | Plastic | 52 mm | 52 mm | 40000 Hrs | 0.367 in H2O | 91.5 Pa | 38 dB(A) | 24 VDC | Tubeaxial | -20 °C | 70 °C | -20 C | 70 °C | 15 mm | 7800 RPM | Locked Rotor Protection Speed Sensor (Tach) | ||
Sanyo Denki America Inc. | 4 Wire Leads | CSA TUV UL | Ball | 1.2 W | Plastic | Plastic | 52 mm | 52 mm | 24 VDC | Tubeaxial | -20 °C | 70 °C | -20 C | 70 °C | 15 mm | PWM Control Speed Sensor (Tach) | ||||||||||
Sanyo Denki America Inc. | 4 Wire Leads | 50 mA | CSA TUV UL | Ball | 1.2 W | Plastic | 0.088 lb | 39.92 g | Plastic | 52 mm | 52 mm | 40000 Hrs | 0.237 in H2O | 59 Pa | 32 dB | 24 VDC | Tubeaxial | -20 °C | 70 °C | -20 C | 70 °C | 15 mm | 6300 RPM | 0.395 mł/min | 14.1 CFM | PWM Control Speed Sensor (Tach) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.45 | |
| 10 | $ 16.85 | |||
| 25 | $ 16.21 | |||
| 50 | $ 15.14 | |||
| 140 | $ 13.97 | |||
| 280 | $ 13.76 | |||
| 560 | $ 13.65 | |||
Description
General part information
9GA0524 Series
Fan Tubeaxial 24VDC Square - 52mm L x 52mm H Ball 9.7 CFM (0.272m³/min) 2 Wire Leads
