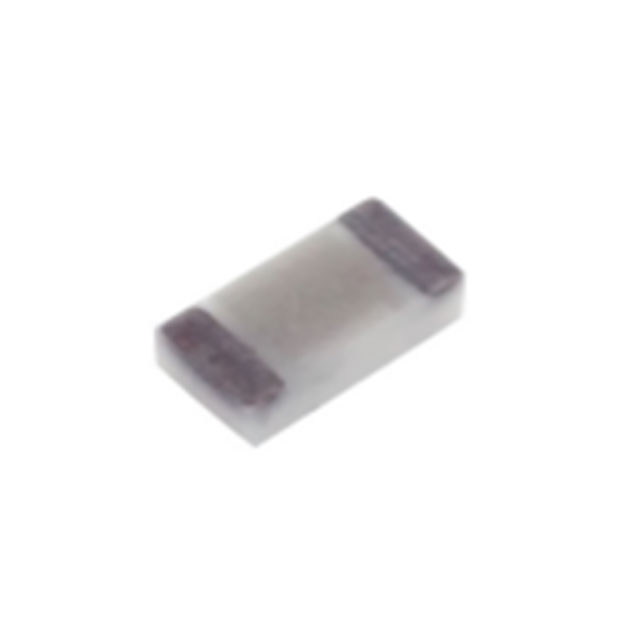

NB-PTCO-321
ActiveTE Connectivity Measurement Specialties
SENSOR RTD 1KOHM 0.12% 1206
Deep-Dive with AI
Search across all available documentation for this part.
NB-PTCO-321
ActiveTE Connectivity Measurement Specialties
SENSOR RTD 1KOHM 0.12% 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NB-PTCO-321 |
|---|---|
| Accuracy | 0.3 °C |
| Current | 500 µA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | 1206 (3216 Metric) |
| Resistance @ 0°C | 1000 Ohms |
| Resistance Tolerance | 0.12 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.84 | |
| Digi-Reel® | 1 | $ 1.84 | ||
| Tape & Reel (TR) | 5000 | $ 0.75 | ||
Description
General part information
NB-PTCO Series
1 kOhms RTD ±0.12% 1206 (3216 Metric)
Documents
Technical documentation and resources
No documents available
