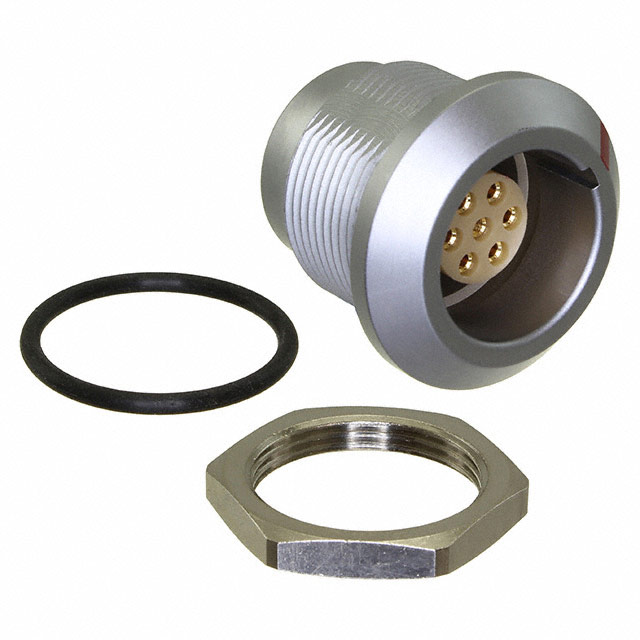

FLKD-07EGFS-GCP-001

Active

Amphenol LTW

CONN RCPT FMALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FLKD-07EGFS-GCP-001

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	11 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	D-7
Shielding	Shielded
Voltage Rating	550 VDC

Part	Contact Finish - Mating	Mounting Feature	Color	Shell Finish	Connector Type	Orientation	Insert Material	Applications	Contact Material	Current Rating (Amps)	Primary Material	Shell Size - Insert	Number of Positions	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Shielding	Ingress Protection	Voltage Rating
Amphenol LTW FLKD-07EGFS-GCP-001	Gold	Bulkhead - Rear Side Nut	Silver	Chrome	Receptacle Female Sockets	G	Polyphenylene Sulfide (PPS)	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	11 A	Metal	D-7	7	Push-Pull	125 °C	-40 °C	Copper Alloy	Shielded	IP68 - Dust Tight Waterproof	550 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
