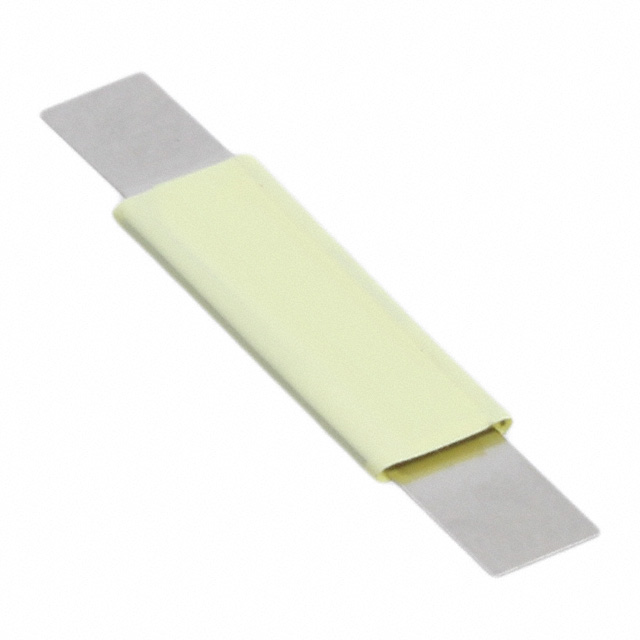

MF-S175S

Obsolete

Bourns Inc.

PTC RESET FUSE 15V 1.75A STRAP

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE 15V 1.75A STRAP

Technical Specifications

Parameters and characteristics for this part

Specification	MF-S175S

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	1.75 A
Current - Max [Max]	100 A
Current - Trip (It)	3.8 A
Mounting Type	User Defined
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Strap
Resistance - Initial (Ri) (Min) [Min]	50 mOhms
Resistance - Post Trip (R1) (Max) [Max]	120 mOhms
Size / Dimension [x]	0.827 in
Size / Dimension [x]	21 mm
Size / Dimension [y]	5.05 mm
Size / Dimension [y]	0.199 in
Thickness (Max) [Max]	1 mm
Thickness (Max) [Max]	0.039 in
Time to Trip	4 s
Type	Polymeric
Voltage - Max [Max]	15 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Max [Max]	Time to Trip	Approval Agency	Current - Hold (Ih) (Max) [Max]	Type	Resistance - Post Trip (R1) (Max) [Max]	Current - Max [Max]	Resistance - Initial (Ri) (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Current - Trip (It)
Bourns Inc. MF-S175S	85 °C	-40 °C	15 V	4 s	cURus TUV	1.75 A	Polymeric	120 mOhms	100 A	50 mOhms	0.827 in	5.05 mm	21 mm	0.199 in	User Defined	1 mm	0.039 in	Strap	3.8 A
Bourns Inc. MF-S175SS-0	85 °C	-40 °C	15 V	4 s	cURus TUV	1.75 A	Polymeric	120 mOhms	100 A	50 mOhms	0.866 in	5.05 mm	22 mm	0.199 in	User Defined	1 mm	0.039 in	Strap	3.8 A
Bourns Inc. MF-S120	85 °C	-40 °C	15 V	5 s	cURus TUV	1.2 A	Polymeric	220 mOhms	100 A	85 mOhms	0.827 in	5.05 mm	21 mm	0.199 in	User Defined	1 mm	0.039 in	Strap	2.7 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Polymeric PTC Resettable Fuse 15V 1.75 A Ih User Defined Strap
