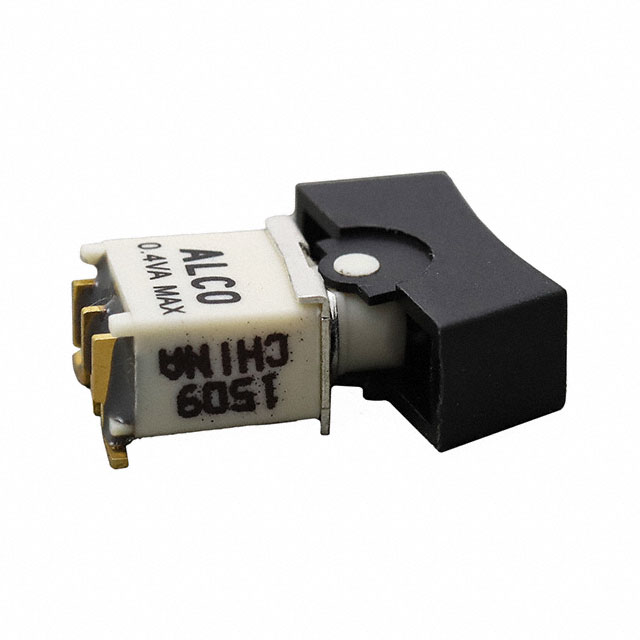

RBS1R202MTRES
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH ROCKER SPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RBS1R202MTRES
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH ROCKER SPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RBS1R202MTRES |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 0.4 VA |
| Features | Process Sealed |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | SMD (SMT) Tab |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.86 | |
| 10 | $ 4.98 | |||
| 25 | $ 4.68 | |||
| 50 | $ 4.56 | |||
Description
General part information
RBS1R2 Series
Rocker Switch SPDT 0.4VA (AC/DC) 20 V Surface Mount, Right Angle
