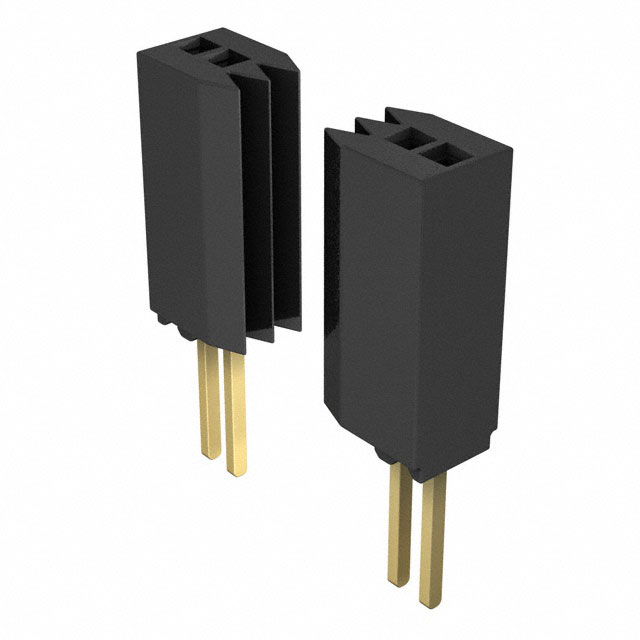

SMS-107-02-G-S

Active

Samtec Inc.

CONN RCPT 7POS 0.05 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 7POS 0.05 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SMS-107-02-G-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	4.83 mm
Contact Length - Post	0.19 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Contact Finish - Mating	Insulation Color	Contact Shape	Number of Rows	Insulation Height	Insulation Height	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Number of Positions	Contact Material	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating
Samtec Inc. SMS-107-02-G-S	-55 °C	125 °C	Receptacle	Forked	Gold	Black	Square	1	0.335 "	8.51 mm	Solder	10 çin	0.25 çm	Push-Pull	Through Hole	All	5 A	7	Phosphor Bronze	Gold	4.83 mm	0.19 in	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	0.05 in	1.27 mm
