CCBSBT-10-01A

Active

Essentra Access Solutions

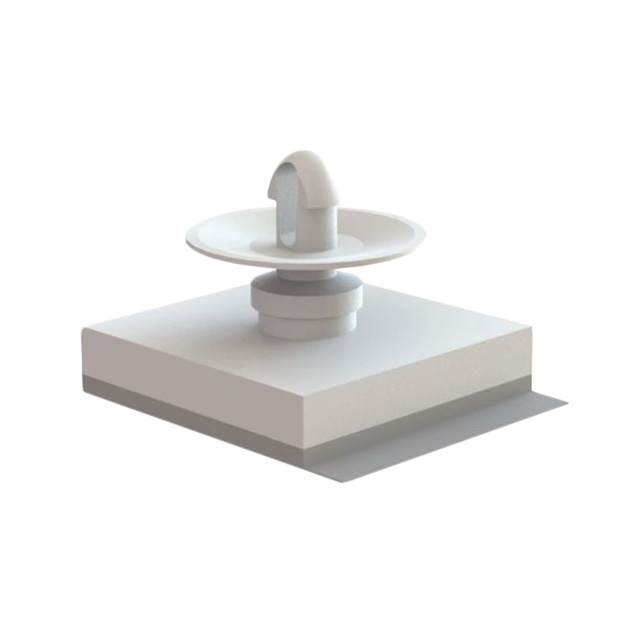

CUPPED CBS BASE TEARDROP 5/8"

Search across all available documentation for this part.

Active

Essentra Access Solutions

CUPPED CBS BASE TEARDROP 5/8"

Technical Specifications

Parameters and characteristics for this part

Specification	CCBSBT-10-01A

Between Board Height	15.88 mm
Between Board Height	0.625 in
Between Board Height	0.625 in
Holding Type	Snap Fit
Length - Overall [x]	19.5 mm
Length - Overall [x]	0.768 "
Material	Nylon
Mounting Type	Adhesive
Support Hole Diameter [diameter]	2.54 mm
Support Hole Diameter [diameter]	0.1 in
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type	Length - Overall [x]	Length - Overall [x]	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Holding Type	Length - Overall
Essentra Access Solutions CCBSBT- 6-01A-RT	0.0625 "	0.062 "	1.57 mm	Adhesive	0.517 in	13.13 mm	Nylon	2.54 mm	0.1 in	0.375 in	0.375 in	9.53 mm	Snap Fit
Essentra Access Solutions CCBSBT-10-01A	0.0625 "	0.062 "	1.57 mm	Adhesive	0.768 "	19.5 mm	Nylon	2.54 mm	0.1 in	0.625 in	0.625 in	15.88 mm	Snap Fit
Essentra Access Solutions CCBSBT- 7-01A-RT	0.0625 "	0.062 "	1.57 mm	Adhesive	0.585 "	14.86 mm	Nylon	2.54 mm	0.1 in	0.438 in	11.13 mm	0.4375 in	Snap Fit
Essentra Access Solutions CCBSBT- 8-01A-RT	0.0625 "	0.062 "	1.57 mm	Adhesive	0.642 in		Nylon	2.54 mm	0.1 in	0.5 in	0.5 in	12.7 mm	Snap Fit	16.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Fit / Adhesive Nylon 0.625" (15.88mm) 5/8"
