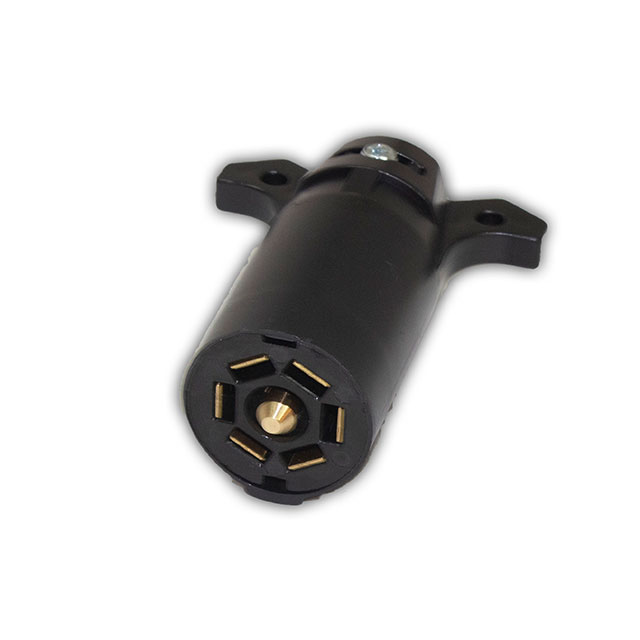

TC7W-P1-N

Active

Switch Components

CONN CIRC PLUG 7POS SET SCREW

Search across all available documentation for this part.

Active

Switch Components

CONN CIRC PLUG 7POS SET SCREW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (6 + PE) Position Circular Connector Plug, Female Sockets and Male Pins Set Screw

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TC7W-P1-N	TC7W Series

Applications	Automotive	Automotive
Color	Black	Black, Silver
Connector Type	Male Pins, Plug, Female Sockets	Male Pins, Plug, Female Sockets, Receptacle
Contact Material	Brass	Brass
Fastening Type	Push-Pull	Push-Pull
Features	Cable Clamp	Cable Clamp, Cap (Cover)
Insert Material	Polyacrylonitrile Butadiene Styrene (ABS)	Polyacrylonitrile Butadiene Styrene (ABS)
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions [custom]	1	1
Number of Positions [custom]	6	6
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic, Metal
Shell Material	Polyacrylonitrile Butadiene Styrene (ABS)	Polyacrylonitrile Butadiene Styrene (ABS), Iron
Shielding	Unshielded	Unshielded
Termination	Set Screw	Set Screw

CONN CIRC PLUG 7POS SET SCREW

Part	Primary Material	Applications	Number of Positions [custom]	Number of Positions [custom]	Termination	Orientation	Insert Material	Connector Type	Shielding	Mounting Type	Color	Contact Material	Features	Fastening Type	Shell Material	Mounting Feature
Switch Components TC7W-P1-N	Plastic	Automotive	1	6	Set Screw	Keyed	Polyacrylonitrile Butadiene Styrene (ABS)	Female Sockets, Male Pins, Plug	Unshielded	Free Hanging (In-Line)	Black	Brass	Cable Clamp	Push-Pull	Polyacrylonitrile Butadiene Styrene (ABS)
Switch Components TC7W-P1-Z	Metal	Automotive	1	6	Set Screw	Keyed		Female Sockets, Male Pins, Plug	Unshielded	Free Hanging (In-Line)	Silver	Brass	Cable Clamp	Push-Pull	Iron
Switch Components TC7W-SC2-N	Plastic	Automotive	1	6	Set Screw	Keyed	Polyacrylonitrile Butadiene Styrene (ABS)	Female Sockets, Male Pins, Receptacle	Unshielded		Black	Brass	Cap (Cover)	Push-Pull	Polyacrylonitrile Butadiene Styrene (ABS)	Flange
Switch Components TC7W-SC2-Z	Metal	Automotive	1	6	Set Screw	Keyed		Female Sockets, Male Pins, Receptacle	Unshielded		Silver	Brass	Cable Clamp, Cap (Cover)	Push-Pull	Iron	Flange
