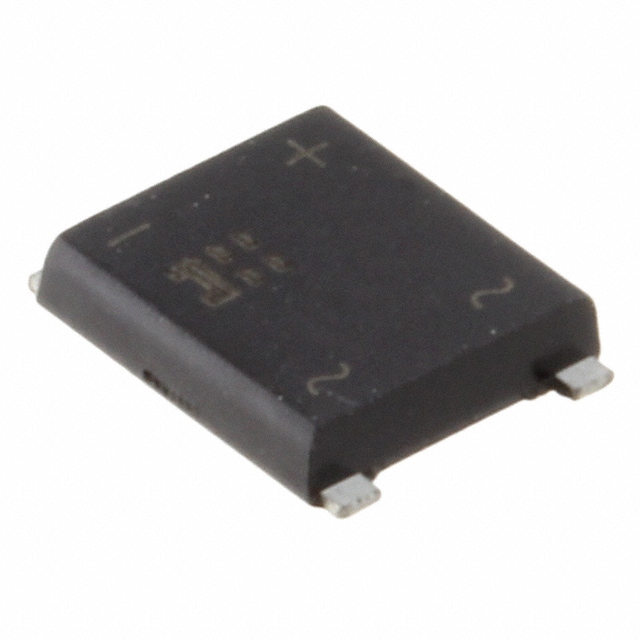

DSRHD10-13

Obsolete

Diodes Inc

BRIDGE RECTIFIER DIODE, BLANK, 1 PHASE, 1A, 1000V V(RRM), SILICON,

Search across all available documentation for this part.

Obsolete

Diodes Inc

BRIDGE RECTIFIER DIODE, BLANK, 1 PHASE, 1A, 1000V V(RRM), SILICON,

Technical Specifications

Parameters and characteristics for this part

Specification	DSRHD10-13

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 çA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, Flat Leads
Supplier Device Package	4-T MiniDip
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Inactive Datasheet Archive

Part	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Technology	Diode Type
Diodes Inc DSRHD10-13	1000 V	1 A	-55 °C	150 °C	Surface Mount	4-SMD Flat Leads	4-T MiniDip	1.1 V	10 çA	Standard	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

This 1.0ADiodeStarRectifier has been designed for use in general purpose rectifier.
