EVB_RT6252AHGJ6F

Active

Richtek USA Inc.

EVAL BOARD FOR RT6252A

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL BOARD FOR RT6252A

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output	Mounting Type	Package / Case	Output Type	Number of Outputs	Topology	Supplier Device Package	Voltage - Output (Max) [Max]	Output Configuration	Voltage - Input (Min) [Min]	Frequency - Switching	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Function	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Output	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Regulator Topology	Board Type
Richtek USA Inc. RT6252AHGJ6F	2 A	Surface Mount	SOT-23-6 Thin TSOT-23-6	Adjustable	1	Buck	TSOT-23-6	7 V	Positive	4.5 V	580 kHz	17 V	-40 °C	125 ¯C	Step-Down

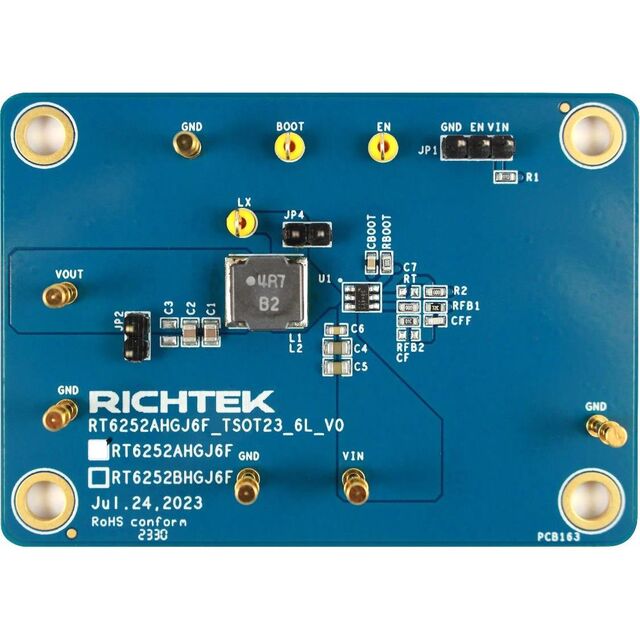

Richtek USA Inc. EVB_RT6252AHGJ6F	2 A										580 kHz					RT6252A	Non-Isolated	1	5 V	Board(s)	17 V	4.5 V	DC/DC Step Down	Buck	Fully Populated
Richtek USA Inc. RT6252AHGH6F	2 A	Surface Mount	SOT-563 SOT-666	Adjustable	1	Buck	SOT-563 (FC)	7 V	Positive	4.5 V	580 kHz	17 V	-40 °C	125 ¯C	Step-Down
Richtek USA Inc. EVB_RT6252BHGJ6F	2 A										580 kHz					RT6252B	Non-Isolated	1	5 V	Board(s)	17 V	4.5 V	DC/DC Step Down	Buck	Fully Populated
Richtek USA Inc. RT6252BHGH6F	2 A	Surface Mount	SOT-563 SOT-666	Adjustable	1	Buck	SOT-563 (FC)	7 V	Positive	4.5 V	580 kHz	17 V	-40 °C	125 ¯C	Step-Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 61.06

General part information

RT6252A ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
