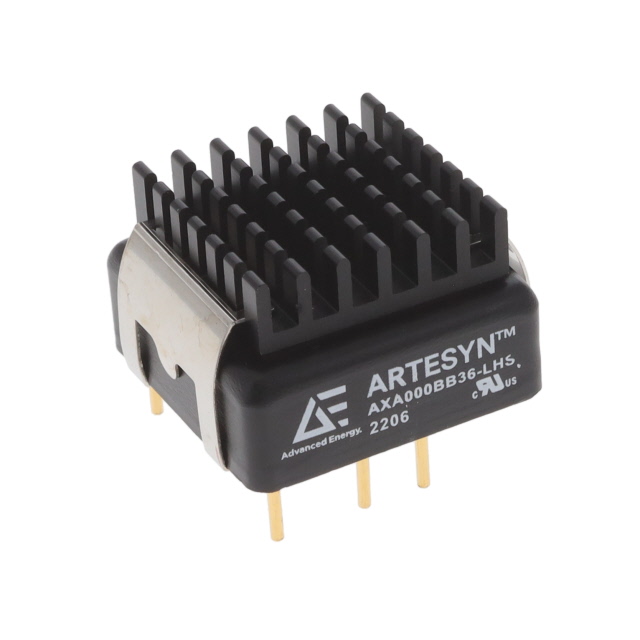

AXA000BB36-LHS

Active

ARTESYN / Advanced Energy

DC DC CONVERTER +/-12V 9.8W

Deep-Dive with AI

Search across all available documentation for this part.

AXA000BB36-LHS

Active

ARTESYN / Advanced Energy

DC DC CONVERTER +/-12V 9.8W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AXA000BB36-LHS

Applications	ITE (Commercial)
Current - Output (Max)	410 mA
Current - Output (Max)	410 mA
Efficiency	86 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	9.8 W
Size / Dimension [x]	31 mm
Size / Dimension [x]	1.22 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.69 "
Size / Dimension [z]	17.5 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

AXA000 Series

Part	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 2	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Power (Watts)	Features	Mounting Type	Type	Efficiency	Package / Case	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Package / Case	Current - Output (Max) [Max]
ARTESYN / Advanced Energy AXA000BB18-L	12 V	9 V	1.5 kV	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	-12 V	36 V	85 °C	-40 °C	ITE (Commercial)	2	10 W	Remote On/Off SCP	Through Hole	Isolated Module	86 %	6-DIP Module	410 mA	410 mA
ARTESYN / Advanced Energy AXA000BB36-L	12 V	18 V	1.5 kV	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	-12 V	75 V	85 °C	-40 °C	ITE (Commercial)	2	10 W	Remote On/Off SCP	Through Hole	Isolated Module	86 %	6-DIP Module	410 mA	410 mA
ARTESYN / Advanced Energy AXA000CC36-L	15 V	18 V	1.5 kV	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	-15 V	75 V	85 °C	-40 °C	ITE (Commercial)	2	10 W	Remote On/Off SCP	Through Hole	Isolated Module	87 %	6-DIP Module	330 mA		330 mA
ARTESYN / Advanced Energy AXA000BB36-LHS	12 V	18 V	1.5 kV	0.69 "	25.4 mm	1.22 in	25.4 mm	31 mm	17.5 mm	-12 V	75 V	85 °C	-40 °C	ITE (Commercial)	2	9.8 W		Through Hole	Isolated Module	86 %	6-DIP Module	410 mA	410 mA
ARTESYN / Advanced Energy AXA000H18-L	24 V	9 V	1.5 kV	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm		36 V	85 °C	-40 °C	ITE (Commercial)	1	10 W	Remote On/Off SCP	Through Hole	Isolated Module	86 %	6-DIP Module				5 Leads	410 mA
ARTESYN / Advanced Energy AXA000CC18-L	15 V	9 V	1.5 kV	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	-15 V	36 V	85 °C	-40 °C	ITE (Commercial)	2	10 W	Remote On/Off SCP	Through Hole	Isolated Module	87 %	6-DIP Module	330 mA		330 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.79
		5	$ 34.53
		10	$ 34.26

Description

General part information

AXA000 Series

Isolated Module DC DC Converter 2 Output 12V -12V 410mA, 410mA 18V - 75V Input

Documents

Technical documentation and resources

No documents available
