AIK12N04AP024-2M

Active

Altech Corporation

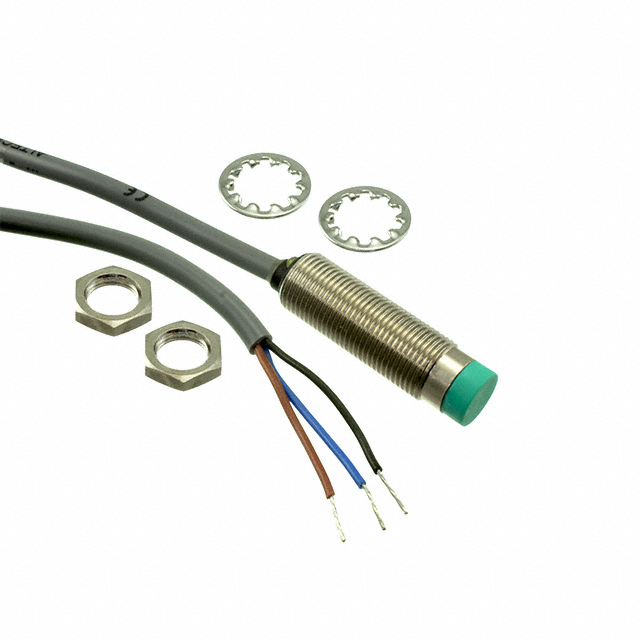

SENSOR PROX INDUCTIVE 4MM CYLIND

Search across all available documentation for this part.

Active

Altech Corporation

SENSOR PROX INDUCTIVE 4MM CYLIND

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.25

General part information

SENSOR PROX INDUCTIVE 4MM CYLIND

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AIK12N04AP024-2M	AIK12N04 Series

Indicator [custom]	LED	LED
Ingress Protection	NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4	NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4
Material - Body	Nickel-Plated Brass	Nickel-Plated Brass
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	PNP-NO, 3-Wire	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M12	Cylinder, Threaded - M12
Response Frequency	1 kHz	1 kHz
Sensing Distance	4 mm	4 mm
Sensing Distance	0.157 in	0.157 in
Sensor Type	Inductive	Inductive
Shielding	Shielded	Shielded
Termination Style	Cable Leads	Connector, Cable Leads
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

SENSOR PROX INDUCTIVE 4MM CYLIND

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Package / Case	Termination Style	Ingress Protection	Response Frequency	Indicator [custom]	Material - Body	Output Type	Sensing Distance	Sensing Distance
Altech Corporation AIK12N04AP024-Q65	Shielded	70 °C	-25 °C	30 VDC	10 VDC	Inductive	Cylinder, Threaded - M12	Connector	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	1 kHz	LED	Nickel-Plated Brass	PNP-NO, 3-Wire	4 mm	0.157 in
Altech Corporation AIK12N04AN024-Q65	Shielded	70 °C	-25 °C	30 VDC	10 VDC	Inductive	Cylinder, Threaded - M12	Connector	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	1 kHz	LED	Nickel-Plated Brass	PNP-NO, 3-Wire	4 mm	0.157 in
Altech Corporation AIK12N04AP024-2M	Shielded	70 °C	-25 °C	30 VDC	10 VDC	Inductive	Cylinder, Threaded - M12	Cable Leads	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	1 kHz	LED	Nickel-Plated Brass	PNP-NO, 3-Wire	4 mm	0.157 in
Altech Corporation AIK12N04AN024-2M	Shielded	70 °C	-25 °C	30 VDC	10 VDC	Inductive	Cylinder, Threaded - M12	Cable Leads	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	1 kHz	LED	Nickel-Plated Brass	PNP-NO, 3-Wire	4 mm	0.157 in
