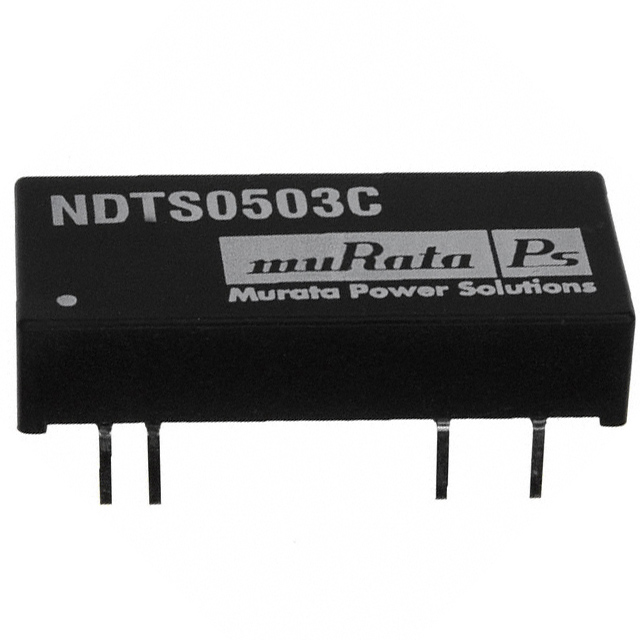

NDTS0503C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 3W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 3W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 3.3V 3W

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Isolation	Mounting Type	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Current - Output (Max) [Max]	Voltage - Output 1	Power (Watts)	Type
Murata Power Solutions Inc. NDTS0503C	9 V	85 °C	-40 °C	24-DIP Module (600 mil, 8 Leads)	1000 V	Through Hole	1	ITE (Commercial)	4.5 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	63 %	909 mA	3.3 V	3 W	Isolated Module
Murata Power Solutions Inc. NDTS0505C	9 V	85 °C	-40 °C	24-DIP Module (600 mil, 8 Leads)	1000 V	Through Hole	1	ITE (Commercial)	4.5 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	71 %	600 mA	5 V	3 W	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 909mA 4.5V - 9V Input
