AXE5E1226

Active

Panasonic Electric Works

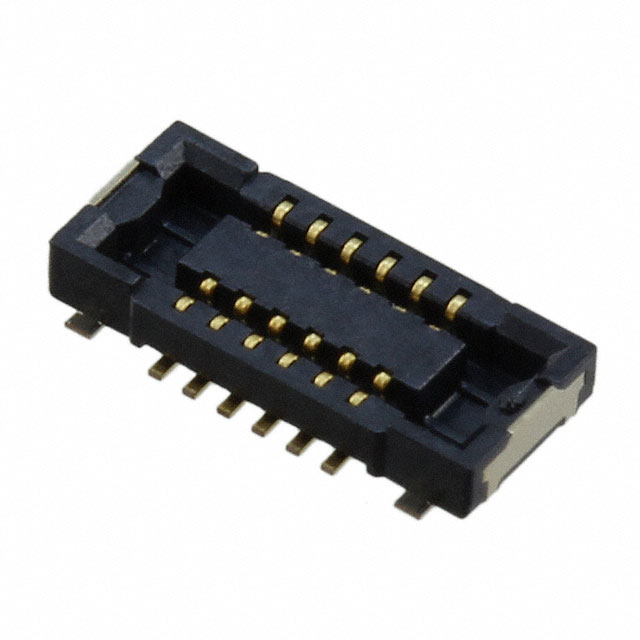

CONN SOCKET 12POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 12POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE5E1226

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	12
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Rows	Mounting Type	Features	Number of Positions	Connector Type	Mated Stacking Heights
Panasonic Electric Works AXE5E1226	Flash	Gold	0.016 in	0.4 mm	0.03 in	0.75 mm	2	Surface Mount	Solder Retention	12	Socket Center Strip Contacts	0.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 3.99

General part information

12 Position Connector Socket, Center Strip Contacts Surface Mount Gold
