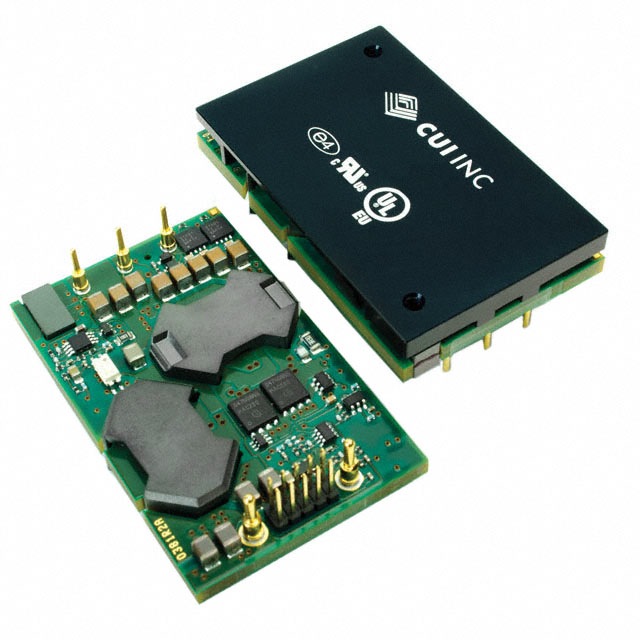

NQB-420DWA-AN

Obsolete

CUI Inc.

DC DC CONVERTER 12V 420W

Deep-Dive with AI

Search across all available documentation for this part.

NQB-420DWA-AN

Obsolete

CUI Inc.

DC DC CONVERTER 12V 420W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NQB-420DWA-AN

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	35 A
Efficiency	96.4 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	15-DIP Module, 1/4 Brick
Power (Watts)	420 W
Size / Dimension [x]	2.28 in
Size / Dimension [x]	57.9 mm
Size / Dimension [y]	36.8 mm
Size / Dimension [y]	1.45 in
Size / Dimension [z]	11.3 mm
Size / Dimension [z]	0.44 "
Type	Intermediate Bus Converter, Digital
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

NQB-420 Series

Part	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Voltage - Output 1	Voltage - Isolation	Control Features	Applications	Voltage - Input (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Features	Voltage - Input (Min) [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type
CUI Inc. NQB-420DWA-AN	420 W	35 A	96.4 %	12 V	2250 VDC	Active Low Enable	ITE (Commercial)	75 V	Through Hole	2.28 in	11.3 mm	0.44 "	57.9 mm	36.8 mm	1.45 in	1	OCP OTP OVP Remote On/Off UVLO	36 V	15-DIP Module 1/4 Brick	125 °C	-40 °C	Intermediate Bus Converter Digital
CUI Inc. NQB-420DWA-ANH	420 W	35 A	96.4 %	12 V	2250 VDC	Active Low Enable	ITE (Commercial)	75 V	Through Hole	2.28 in	13.2 mm	0.52 "	57.9 mm	36.8 mm	1.45 in	1	OCP OTP OVP Remote On/Off UVLO	36 V	15-DIP Module 1/4 Brick	125 °C	-40 °C	Intermediate Bus Converter Digital
CUI Inc. NQB-420NWA-ANH	420 W	35 A	96.4 %	12 V	2250 VDC	Active Low Enable	ITE (Commercial)	75 V	Through Hole	2.28 in	13.2 mm	0.52 "	57.9 mm	36.8 mm	1.45 in	1	OCP OTP OVP Remote On/Off UVLO	36 V	1/4 Brick 5-DIP Module	125 °C	-40 °C	Intermediate Bus Converter
CUI Inc. NQB-420NWA-DANH	420 W	35 A	96.4 %	12 V	2250 VDC	Active Low Enable	ITE (Commercial)	75 V	Through Hole	2.28 in	13.2 mm	0.52 "	57.9 mm	36.8 mm	1.45 in	1	OCP OTP OVP Remote On/Off UVLO	36 V	1/4 Brick 5-DIP Module	125 °C	-40 °C	Intermediate Bus Converter
CUI Inc. NQB-420NWA-AN	420 W	35 A	96.4 %	12 V	2250 VDC	Active Low Enable	ITE (Commercial)	75 V	Through Hole	2.28 in	11.3 mm	0.44 "	57.9 mm	36.8 mm	1.45 in	1	OCP OTP OVP Remote On/Off UVLO	36 V	1/4 Brick 5-DIP Module	125 °C	-40 °C	Intermediate Bus Converter

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NQB-420 Series

Intermediate Bus Converter, Digital DC DC Converter 1 Output 12V 35A 36V - 75V Input
