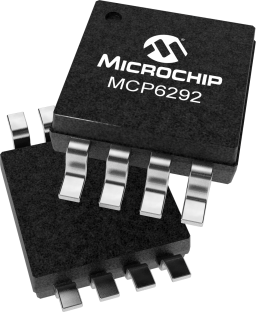

MCP6292-E/MS
ActiveMicrochip Technology
DUAL OP-AMP, 5000 UV OFFSET-MAX, 10 MHZ BAND WIDTH, PDSO8, PLASTIC, MO-187, MSOP-8
Deep-Dive with AI
Search across all available documentation for this part.
MCP6292-E/MS
ActiveMicrochip Technology
DUAL OP-AMP, 5000 UV OFFSET-MAX, 10 MHZ BAND WIDTH, PDSO8, PLASTIC, MO-187, MSOP-8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MCP6292-E/MS | MCP6292 Series |
|---|---|---|
| Amplifier Type | General Purpose | General Purpose |
| Current - Input Bias | 1 pA | 1 pA |
| Current - Output / Channel | 25 mA | 25 mA |
| Current - Supply | 1 mA | 1 mA |
| Gain Bandwidth Product | 10 MHz | 10 MHz |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Number of Circuits | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 - 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Rail-to-Rail | Rail-to-Rail |
| Package / Case | 8-TSSOP, 8-MSOP | 8-TSSOP, 8-MSOP, 8-DIP, 8-SOIC |
| Package / Case | 0.118 in | 0.118 - 3.9 in |
| Package / Case | 3 mm | 3 - 7.62 mm |
| Qualification | - | AEC-Q100 |
| Slew Rate | 7 V/µs | 7 V/µs |
| Supplier Device Package | 8-MSOP | 8-MSOP, 8-PDIP, 8-SOIC |
| Voltage - Input Offset | 3 mV | 3 mV |
| Voltage - Supply Span (Max) [Max] | 6 V | 6 V |
| Voltage - Supply Span (Min) [Min] | 2.4 V | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 0 | $ 0.93 | |
| 1 | $ 0.78 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.73 | |||
| Avnet Americas | N/A | 100 | $ 0.83 | |
| 100 | $ 0.83 | |||
| 250 | $ 0.82 | |||
| 250 | $ 0.82 | |||
| 500 | $ 0.80 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.79 | |||
| 1000 | $ 0.79 | |||
| 2500 | $ 0.77 | |||
| 2500 | $ 0.77 | |||
| Chip1Stop | N/A | 1 | $ 0.77 | |
| 1 | $ 0.96 | |||
| 1 | $ 0.77 | |||
| 1 | $ 0.77 | |||
| 10 | $ 0.71 | |||
| 10 | $ 0.82 | |||
| 10 | $ 0.70 | |||
| 10 | $ 0.70 | |||
| 50 | $ 0.69 | |||
| 50 | $ 0.80 | |||
| 50 | $ 0.69 | |||
| 50 | $ 0.69 | |||
| 100 | $ 0.61 | |||
| 100 | $ 0.74 | |||
| 100 | $ 0.67 | |||
| 100 | $ 0.67 | |||
| 200 | $ 0.61 | |||
| 200 | $ 0.71 | |||
| 200 | $ 0.66 | |||
| 200 | $ 0.65 | |||
| 500 | $ 0.61 | |||
| 500 | $ 0.71 | |||
| 500 | $ 0.65 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.68 | |||
| 1000 | $ 0.63 | |||
| DigiKey | N/A | 1 | $ 1.07 | |
| 1 | $ 1.07 | |||
| 25 | $ 0.90 | |||
| 25 | $ 0.90 | |||
| 100 | $ 0.82 | |||
| 100 | $ 0.82 | |||
| Digikey | Tube | 1 | $ 1.07 | |
| 25 | $ 0.90 | |||
| 100 | $ 0.82 | |||
| Farnell | N/A | 1 | $ 1.05 | |
| 25 | $ 0.89 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.79 | |||
| Future Electronics | N/A | 100 | $ 1.05 | |
| 100 | $ 0.82 | |||
| 300 | $ 1.01 | |||
| 300 | $ 0.82 | |||
| 1000 | $ 0.96 | |||
| 1000 | $ 0.82 | |||
| 2000 | $ 0.94 | |||
| 2000 | $ 0.82 | |||
| 4000 | $ 0.90 | |||
| 4000 | $ 0.82 | |||
| Master Electronics | N/A | 100 | $ 0.80 | |
| 300 | $ 0.77 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.74 | |||
| 2500 | $ 0.70 | |||
| 5000 | $ 0.69 | |||
| Microchip Direct | TUBE | 1 | $ 1.07 | |
| 25 | $ 0.90 | |||
| 100 | $ 0.82 | |||
| 5000 | $ 0.81 | |||
| Microchip Technology Inc | N/A | 1 | $ 1.07 | |
| 25 | $ 0.90 | |||
| 100 | $ 0.82 | |||
| 5000 | $ 0.81 | |||
| Mouser Electronics | N/A | 1 | $ 1.07 | |
| 25 | $ 0.90 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.82 | |||
| NAC | N/A | 1 | $ 1.11 | |
| 100 | $ 1.00 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.90 | |||
| Newark | N/A | 1 | $ 1.11 | |
| 1 | $ 1.11 | |||
| 10 | $ 1.02 | |||
| 10 | $ 1.02 | |||
| 25 | $ 0.94 | |||
| 25 | $ 0.94 | |||
| 50 | $ 0.89 | |||
| 50 | $ 0.89 | |||
| 100 | $ 0.85 | |||
| 100 | $ 0.85 | |||
| Onlinecomponents.com | N/A | 100 | $ 0.80 | |
| 100 | $ 0.80 | |||
| 300 | $ 0.77 | |||
| 300 | $ 0.77 | |||
| 500 | $ 0.76 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.74 | |||
| 1000 | $ 0.74 | |||
| 2500 | $ 0.70 | |||
| 2500 | $ 0.70 | |||
| 5000 | $ 0.69 | |||
| 5000 | $ 0.69 | |||
| RS | N/A | 5 | $ 0.64 | |
| 25 | $ 1.02 | |||
| 25 | $ 1.02 | |||
| 100 | $ 0.97 | |||
| 100 | $ 0.64 | |||
| 100 | $ 0.97 | |||
| 500 | $ 1.03 | |||
| TME | N/A | 1 | $ 0.96 | |
| 1 | $ 0.96 | |||
| 10 | $ 0.90 | |||
| 10 | $ 0.90 | |||
| 25 | $ 0.89 | |||
| 25 | $ 0.89 | |||
| 100 | $ 0.82 | |||
| 100 | $ 0.82 | |||
| Verical | N/A | 7 | $ 0.78 | |
| 7 | $ 0.78 | |||
| 31 | $ 1.03 | |||
| 36 | $ 0.89 | |||
| 38 | $ 0.83 | |||
| 41 | $ 0.78 | |||
| 50 | $ 0.87 | |||
| 50 | $ 0.82 | |||
| 50 | $ 1.00 | |||
| 50 | $ 0.78 | |||
| 100 | $ 0.74 | |||
| 100 | $ 0.77 | |||
| 100 | $ 0.82 | |||
| 100 | $ 1.09 | |||
| 100 | $ 0.92 | |||
| 100 | $ 0.74 | |||
| 100 | $ 1.09 | |||
| 100 | $ 0.78 | |||
| 200 | $ 0.77 | |||
| 200 | $ 0.81 | |||
| 200 | $ 0.90 | |||
| 200 | $ 0.77 | |||
| 300 | $ 0.99 | |||
| 300 | $ 0.99 | |||
| 500 | $ 0.73 | |||
| 500 | $ 0.77 | |||
| 500 | $ 0.81 | |||
| 500 | $ 0.96 | |||
| 500 | $ 0.89 | |||
| 500 | $ 0.73 | |||
| 500 | $ 0.96 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.81 | |||
| 1000 | $ 0.95 | |||
| 1000 | $ 0.85 | |||
| 1000 | $ 0.95 | |||
| 2500 | $ 0.90 | |||
| 2500 | $ 0.90 | |||
MCP6292 Series
1.0 mA, 10 MHz Rail-to-Rail Op Amp
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply | Gain Bandwidth Product | Package / Case | Package / Case | Package / Case | Current - Output / Channel | Qualification | Slew Rate | Voltage - Supply Span (Min) [Min] | Supplier Device Package | Output Type | Voltage - Input Offset | Current - Input Bias | Number of Circuits | Voltage - Supply Span (Max) [Max] | Mounting Type | Grade | Amplifier Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MCP6292-H/MSVAO | 150 °C | -40 °C | 1 mA | 10 MHz | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 25 mA | AEC-Q100 | 7 V/µs | 2.4 V | 8-MSOP | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | Automotive | General Purpose |
Microchip Technology MCP6292-E/P | 125 °C | -40 °C | 1 mA | 10 MHz | 8-DIP | 0.3 in | 7.62 mm | 25 mA | 7 V/µs | 2.4 V | 8-PDIP | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Through Hole | General Purpose | ||
Microchip Technology MCP6292T-E/MS | 125 °C | -40 °C | 1 mA | 10 MHz | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 25 mA | 7 V/µs | 2.4 V | 8-MSOP | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | General Purpose | ||
Microchip Technology MCP6292T-H/MS | 150 °C | -40 °C | 1 mA | 10 MHz | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 25 mA | 7 V/µs | 2.4 V | 8-MSOP | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | General Purpose | ||
Microchip Technology MCP6292T-E/SNVAO | 125 °C | -40 °C | 1 mA | 10 MHz | 8-SOIC | 3.9 mm | 25 mA | AEC-Q100 | 7 V/µs | 2.4 V | 8-SOIC | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | Automotive | General Purpose | |
Microchip Technology MCP6292-E/SNVAO | 125 °C | -40 °C | 1 mA | 10 MHz | 8-SOIC | 3.9 mm | 25 mA | AEC-Q100 | 7 V/µs | 2.4 V | 8-SOIC | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | Automotive | General Purpose | |
Microchip Technology MCP6292T-E/SN | 125 °C | -40 °C | 1 mA | 10 MHz | 8-SOIC | 3.9 mm | 25 mA | 7 V/µs | 2.4 V | 8-SOIC | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | General Purpose | |||
Microchip Technology MCP6292-E/MS | 125 °C | -40 °C | 1 mA | 10 MHz | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 25 mA | 7 V/µs | 2.4 V | 8-MSOP | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | General Purpose | ||
Microchip Technology MCP6292T-H/MSVAO | 150 °C | -40 °C | 1 mA | 10 MHz | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 25 mA | AEC-Q100 | 7 V/µs | 2.4 V | 8-MSOP | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | Automotive | General Purpose |
Microchip Technology MCP6292-H/MS | 150 °C | -40 °C | 1 mA | 10 MHz | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 25 mA | 7 V/µs | 2.4 V | 8-MSOP | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | General Purpose | ||
Microchip Technology MCP6292T-E/MSVAO | 125 °C | -40 °C | 1 mA | 10 MHz | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 25 mA | AEC-Q100 | 7 V/µs | 2.4 V | 8-MSOP | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | Automotive | General Purpose |
Microchip Technology MCP6292-E/SN | 125 °C | -40 °C | 1 mA | 10 MHz | 8-SOIC | 3.9 mm | 25 mA | 7 V/µs | 2.4 V | 8-SOIC | Rail-to-Rail | 3 mV | 1 pA | 2 | 6 V | Surface Mount | General Purpose |
Description
General part information
MCP6292 Series
The Microchip Technology Inc. MCP6291/1R/2/3/4/5 family of operational amplifiers (op amps) provide wide bandwidth for the current. This family has a 10 MHz Gain Bandwidth Product (GBWP) and a 65° phase margin. This family also operates from a single supply voltage as low as 2.4V, while drawing 1 mA (typical) quiescent current. Additionally, the MCP6291/1R/2/3/4/5 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS – 300 mV. This family of operational amplifiers is designed with Microchip’s advanced CMOS process. The MCP6293/5 have a Chip Select (CS) input for single/dual op amps. The CS input puts the device in Low-power mode. The MCP6291/1R/2/3/4/5 family operates over the Extended Temperature Range of -40°C to +125°C.
