PSA.0S.303.CLLC32

Active

LEMO

CONN CIRC RCPT 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

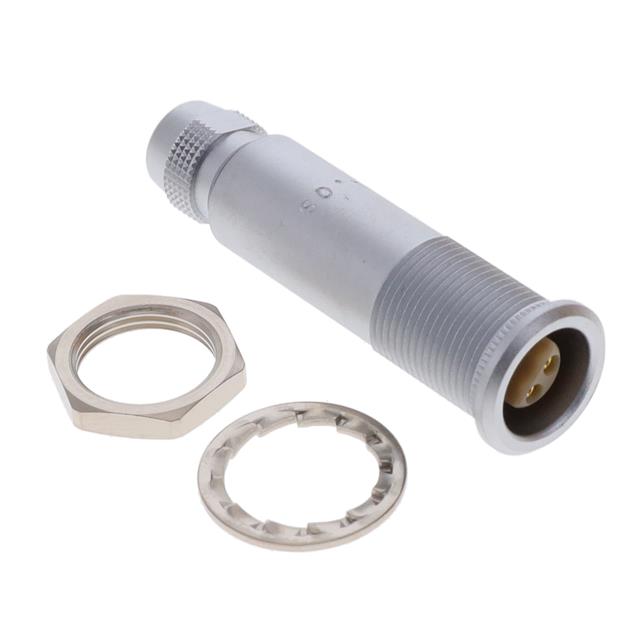

PSA.0S.303.CLLC32

Active

LEMO

CONN CIRC RCPT 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.67
		10	$ 23.48

Description

General part information

PSA.0S Series

3 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PSA.0S.303.CLLC32	PSA.0S Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174
Cable Opening	-	0.051 - 0.067 in
Cable Opening	-	1.3 - 4.2 mm
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	5.2 mm
Cable Opening	-	2.2 - 6.2 mm
Cable Opening	-	0.051 - 0.224 in
Cable Opening	-	0.087 - 0.244 in
Cable Opening	-	1.3 - 5.7 mm
Cable Opening	-	4.2 mm
Cable Opening [custom]	3.2 mm, 2.2 mm	2.2 - 3.2 mm
Cable Opening [custom]	0.126 in, 0.087 in	0.087 - 0.126 in
Center Contact Material	-	Beryllium Copper, Brass
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Triaxial, Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Receptacle, Female Socket, Male Pin, Female Sockets, Male Pins, Insert, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass, Constantan, Copper
Contact Termination	-	Solder
Current Rating (Amps)	7 A	4 - 12 A
Dielectric Material	-	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell, Insert Only, Requires Shell
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount	Free Hanging (In-Line), Panel Mount
Number of Ports	-	1
Number of Positions	-	1 - 2
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	303	116 - 403
Shield Termination	-	Clamp
Shielding	Shielded	Shielded

PSA.0S Series

CONN PNL RCPT TRIAX SKT SLDER

Part	Center Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Body Finish	Connector Style	Cable Group	Shield Termination	Center Contact Plating	Fastening Type	Mating Cycles	Body Material	Includes	Impedance	Ingress Protection	Mounting Feature	Housing Color	Contact Termination	Number of Ports	Contact Material	Material Flammability Rating	Primary Material	Contact Finish - Mating	Mounting Type	Shell Finish	Shell Size - Insert	Features	Backshell Material, Plating	Shielding	Color	Cable Opening [custom]	Cable Opening [custom]	Orientation	Insert Material	Current Rating (Amps)	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
LEMO PSA.0S.650.CLLC27	Beryllium Copper	Polyetheretherketone (PEEK)	-55 °C	250 °C	Female Socket, Receptacle	Chrome	Triaxial	178, RG-174	Clamp	Gold	Push-Pull	1000	Brass	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	IP50	Bulkhead - Rear Side Nut	Silver	Solder
LEMO PSA.0S.650.CTAC27	Brass	Polytetrafluoroethylene (PTFE)	-55 °C	250 °C	Male Pin, Receptacle	Chrome	Triaxial	178, RG-174	Clamp	Gold	Push-Pull	1000	Brass	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	IP50	Bulkhead - Rear Side Nut	Silver	Solder
LEMO PSA.0S.250.CTLC32	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-55 °C	250 °C	Female Socket, Receptacle	Chrome	Coaxial	174, 174A, 178B, 188A, 196A, 316B, RG-122	Clamp	Gold	Push-Pull	1000	Brass	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	IP50	Bulkhead - Rear Side Nut	Silver	Solder	1
LEMO PSA.0S.303.CLLC32			-55 °C	250 °C	Female Sockets, Male Pins, Receptacle						Push-Pull					IP50	Bulkhead - Rear Side Nut				Brass, Bronze	UL94 V-0	Metal	Gold	Free Hanging (In-Line), Panel Mount	Chrome	303	Backshell	Brass, Chrome	Shielded	Silver	2.2 mm, 3.2 mm	0.087 in, 0.126 in	Keyed	Polyetheretherketone (PEEK)	7 A	Brass
LEMO PSA.0S.302.CLLC17			-55 °C	250 °C	Female Sockets, Male Pins, Receptacle						Push-Pull					IP50	Bulkhead - Rear Side Nut				Brass, Bronze	UL94 V-0	Metal	Gold	Free Hanging (In-Line), Panel Mount	Chrome	302	Backshell	Brass, Chrome	Shielded	Silver			Keyed	Polyetheretherketone (PEEK)	10 A	Brass	0.051 in, 0.067 in	1.3 mm, 1.7 mm	2
LEMO PSA.0S.302.CLLK52			-55 °C	250 °C	Female Sockets, Male Pins, Receptacle						Push-Pull					IP50	Bulkhead - Rear Side Nut				Brass, Bronze	UL94 V-0	Metal	Gold	Free Hanging (In-Line), Panel Mount	Chrome	302	Backshell	Brass, Chrome	Shielded	Silver			Keyed	Polyetheretherketone (PEEK)	10 A	Brass		4.2 mm	2	0.165 in, 0.205 in	5.2 mm
LEMO PSA.0S.403.ZTL			-55 °C	250 °C	Female Sockets, Insert											IP50					Bronze	UL94 V-0		Gold			403	Insert Only, Requires Shell		Shielded				Keyed	Polytetrafluoroethylene (PTFE)	4 A				1
LEMO PSA.0S.302.CLLL32			-55 °C	250 °C	Female Sockets, Male Pins, Receptacle						Push-Pull					IP50	Bulkhead - Rear Side Nut				Brass, Bronze	UL94 V-0	Metal	Gold	Free Hanging (In-Line), Panel Mount	Chrome	302	Backshell	Brass, Chrome	Shielded	Silver	2.2 mm, 3.2 mm	0.087 in, 0.126 in	Keyed	Polyetheretherketone (PEEK)	10 A	Brass			2
LEMO PSA.0S.302.CLLC37			-55 °C	250 °C	Female Sockets, Male Pins, Receptacle						Push-Pull					IP50	Bulkhead - Rear Side Nut				Brass, Bronze	UL94 V-0	Metal	Gold	Free Hanging (In-Line), Panel Mount	Chrome	302	Backshell	Brass, Chrome	Shielded	Silver			Keyed	Polyetheretherketone (PEEK)	10 A	Brass			2			3.7 mm	0.126 in	0.146 in	3.2 mm
LEMO PSA.0S.650.CTLC42	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-55 °C	250 °C	Female Socket, Receptacle	Chrome	Triaxial	178, RG-174	Clamp	Gold	Push-Pull	1000	Brass	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	IP50	Bulkhead - Rear Side Nut	Silver	Solder
