MEC1-160-02-L-D-A-K-TR - MEC1-160-02-L-D-A-K-TR

MEC1-160-02-L-D-A-K-TR

Active
Samtec Inc.

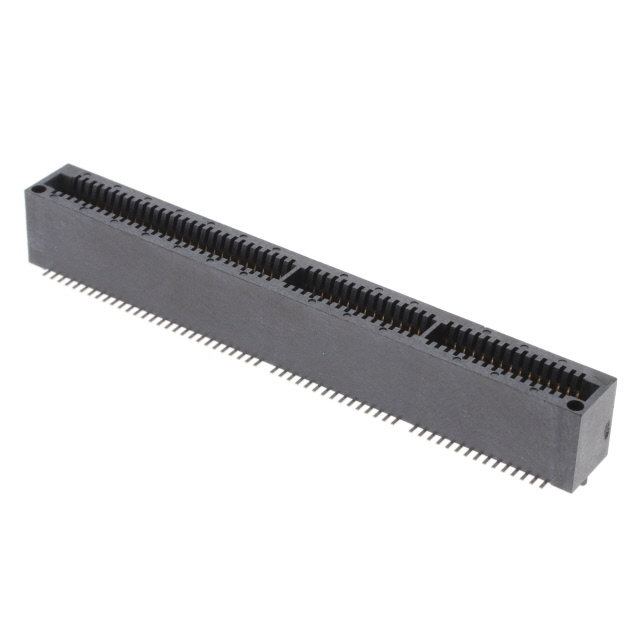

STANDARD CARD EDGE CONNECTORS 1.00 MM MINI EDGE CARD SOCKET, VERTICAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMEC1 DatasheetDatasheet+2
MEC1-160-02-L-D-A-K-TR - MEC1-160-02-L-D-A-K-TR

MEC1-160-02-L-D-A-K-TR

Active
Samtec Inc.

STANDARD CARD EDGE CONNECTORS 1.00 MM MINI EDGE CARD SOCKET, VERTICAL

Deep-Dive with AI

DocumentsMEC1 DatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationMEC1-160-02-L-D-A-K-TR
Card Thickness0.062 in
Card Thickness1.57 mm
Card TypeNon Specified - Dual Edge
ColorBlack
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialBeryllium Copper
Contact TypeLoop Bellows
FeaturesPick and Place, Board Guide
GenderFemale
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeSurface Mount
Number of Positions120
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]0.039 in
Pitch [x]1 mm
Read OutDual
TerminationSolder

MEC1-160 Series

PartGenderContact Finish ThicknessContact Finish ThicknessRead OutNumber of RowsContact FinishPitch [x]Pitch [x]Material - InsulationContact TypeCard TypeMounting TypeContact MaterialFeaturesCard ThicknessCard ThicknessOperating Temperature [Min]Operating Temperature [Max]TerminationColorNumber of Positions
Samtec Inc.
MEC1-160-02-S-D-A-TR
Female
0.76 Ám
30 Áin
Dual
2
Gold
0.039 in
1 mm
Liquid Crystal Polymer (LCP)
Loop Bellows
Non Specified - Dual Edge
Surface Mount
Beryllium Copper
Board Guide
0.062 in
1.57 mm
-55 °C
125 °C
Solder
Black
120
Samtec Inc.
MEC1-160-02-F-D-EM2
Female
0.076 Ám
3 Áin
Dual
2
Gold
0.039 in
1 mm
Liquid Crystal Polymer (LCP)
Loop Bellows
Non Specified - Dual Edge
Surface Mount
Phosphor Bronze
0.062 in
1.57 mm
-55 °C
125 °C
Solder
Black
120
Samtec Inc.
MEC1-160-02-L-D-EM2
Female
0.25 Ám
10 Áin
Dual
2
Gold
0.039 in
1 mm
Liquid Crystal Polymer (LCP)
Loop Bellows
Non Specified - Dual Edge
Board Edge
Straddle Mount
Phosphor Bronze
0.062 in
1.57 mm
-55 °C
125 °C
Solder
Black
120
Samtec Inc.
MEC1-160-02-L-D-RA1-SL
Female
0.25 Ám
10 Áin
Dual
2
Gold
0.039 in
1 mm
Liquid Crystal Polymer (LCP)
Loop Bellows
Non Specified - Dual Edge
Surface Mount
Right Angle
Phosphor Bronze
0.062 in
1.57 mm
-55 °C
125 °C
Solder
Black
120
Samtec Inc.
MEC1-160-02-L-D-A-K-TR
Female
0.25 Ám
10 Áin
Dual
2
Gold
0.039 in
1 mm
Liquid Crystal Polymer (LCP)
Loop Bellows
Non Specified - Dual Edge
Surface Mount
Beryllium Copper
Board Guide
Pick and Place
0.062 in
1.57 mm
-55 °C
125 °C
Solder
Black
120
Samtec Inc.
MEC1-160-02-L-D-A
Female
0.25 Ám
10 Áin
Dual
2
Gold
0.039 in
1 mm
Liquid Crystal Polymer (LCP)
Loop Bellows
Non Specified - Dual Edge
Surface Mount
Phosphor Bronze
Board Guide
0.062 in
1.57 mm
-55 °C
125 °C
Solder
Black
120
Samtec Inc.
MEC1-160-02-F-D-RA1-SL
Female
0.076 Ám
3 Áin
Dual
2
Gold
0.039 in
1 mm
Liquid Crystal Polymer (LCP)
Loop Bellows
Non Specified - Dual Edge
Surface Mount
Right Angle
Phosphor Bronze
0.062 in
1.57 mm
-55 °C
125 °C
Solder
Black
120
Samtec Inc.
MEC1-160-02-S-D-TR
Female
0.76 Ám
30 Áin
Dual
2
Gold
0.039 in
1 mm
Liquid Crystal Polymer (LCP)
Loop Bellows
Non Specified - Dual Edge
Surface Mount
Beryllium Copper
0.062 in
1.57 mm
-55 °C
125 °C
Solder
Black
120
Samtec Inc.
MEC1-160-02-FM-D-K-TR
Female
0.076 Ám
3 Áin
Dual
2
Gold
0.039 in
1 mm
Liquid Crystal Polymer (LCP)
Loop Bellows
Non Specified - Dual Edge
Surface Mount
Beryllium Copper
Pick and Place
0.062 in
1.57 mm
-55 °C
125 °C
Solder
Black
120
Samtec Inc.
MEC1-160-02-S-D-LC-K
Female
0.76 Ám
30 Áin
Dual
2
Gold
0.039 in
1 mm
Liquid Crystal Polymer (LCP)
Loop Bellows
Non Specified - Dual Edge
Surface Mount
Beryllium Copper
Board Lock
Pick and Place
0.062 in
1.57 mm
-55 °C
125 °C
Solder
Black
120

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 8.60
10$ 7.77
25$ 7.00
50$ 6.33
Tape & Reel (TR) 150$ 6.28
NewarkEach 1$ 10.20
10$ 9.79
100$ 8.08
500$ 6.83
1000$ 5.96
2500$ 5.67
SagerN/A 1$ 8.60
10$ 7.77
25$ 7.00
50$ 6.33
100$ 5.69
500$ 5.13
1000$ 4.64
2000$ 4.18

Description

General part information

MEC1-160 Series

120 Position Female Connector Non Specified - Dual Edge Gold 0.039" (1.00mm) Black
