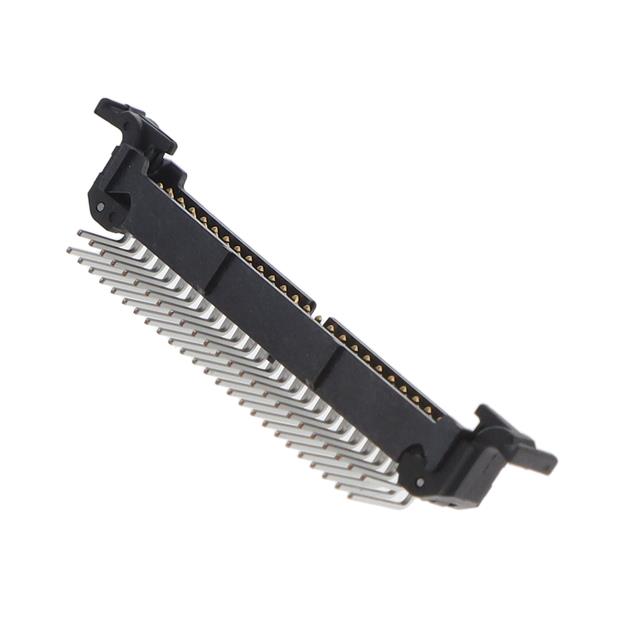

45250-520200

Active

3M (TC)

50P HDR RATH LATCH AU FLASH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

45250-520200

Active

3M (TC)

50P HDR RATH LATCH AU FLASH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45250-520200

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Height	5.33 mm
Insulation Height	0.21 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VAC

45250 Series

Part	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Style	Connector Type	Termination	Shrouding	Contact Type	Features	Pitch - Mating	Pitch - Mating	Voltage Rating	Fastening Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish - Mating	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Mounting Type	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
3M (TC) 45250-220200	0.222 "	5.64 mm	Tin	50	Liquid Crystal Polymer (LCP)	2.54 µm	100 µin	Copper Alloy	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Male Pin	Keying Slot Pick and Place	0.05 in	1.27 mm	125 VAC	Latch Lock/Eject Hooks Short	Square	Flash	Gold	UL94 V-0	0.05 in	1.27 mm	125 °C	-65 ░C	All	Surface Mount	2
3M (TC) 45250-600230	0.222 "	5.64 mm	Tin	50	Liquid Crystal Polymer (LCP)	5.08 µm	200 µin	Copper Alloy	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Male Pin	Keying Slot	0.05 in	1.27 mm	125 VAC	Push-Pull	Square		Gold	UL94 V-0	0.05 in	1.27 mm	125 °C	-65 ░C	All	Through Hole	2	0.094 in	2.4 mm	3 µin	0.076 µm
3M (TC) 45250-520230	0.21 in	5.33 mm	Tin	50	Liquid Crystal Polymer (LCP)	5.08 µm	200 µin	Copper Alloy	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Male Pin	Keying Slot	0.05 in	1.27 mm	125 VAC	Latch Lock/Eject Hooks Short	Square		Gold	UL94 V-0	0.05 in	1.27 mm	125 °C	-65 ░C	All	Through Hole Right Angle	2	0.094 in	2.4 mm	3 µin	0.076 µm
3M (TC) 45250-520200	0.21 in	5.33 mm	Tin	50	Liquid Crystal Polymer (LCP)	2.54 µm	100 µin	Copper Alloy	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Male Pin	Keying Slot	0.05 in	1.27 mm	125 VAC	Latch Lock/Eject Hooks Short	Square	Flash	Gold	UL94 V-0	0.05 in	1.27 mm	125 °C	-65 ░C	All	Through Hole Right Angle	2	0.094 in	2.4 mm
3M (TC) 45250-200200	0.222 "	5.64 mm	Tin	50	Liquid Crystal Polymer (LCP)	2.54 µm	100 µin	Copper Alloy	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Male Pin	Keying Slot Pick and Place	0.05 in	1.27 mm	125 VAC	Push-Pull	Square	Flash	Gold	UL94 V-0	0.05 in	1.27 mm	125 °C	-65 ░C	All	Surface Mount	2
3M (TC) 45250-500230	0.21 in	5.33 mm	Tin	50	Liquid Crystal Polymer (LCP)	5.08 µm	200 µin	Copper Alloy	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Male Pin	Keying Slot	0.05 in	1.27 mm	125 VAC	Push-Pull	Square		Gold	UL94 V-0	0.05 in	1.27 mm	125 °C	-65 ░C	All	Through Hole Right Angle	2	0.094 in	2.4 mm	3 µin	0.076 µm
3M (TC) 45250-500200	0.21 in	5.33 mm	Tin	50	Liquid Crystal Polymer (LCP)	2.54 µm	100 µin	Copper Alloy	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Male Pin	Keying Slot	0.05 in	1.27 mm	125 VAC	Push-Pull	Square	Flash	Gold	UL94 V-0	0.05 in	1.27 mm	125 °C	-65 ░C	All	Through Hole Right Angle	2	0.094 in	2.4 mm
3M (TC) 45250-200230	0.222 "	5.64 mm	Tin	50	Liquid Crystal Polymer (LCP)	5.08 µm	200 µin	Copper Alloy	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Male Pin	Keying Slot Pick and Place	0.05 in	1.27 mm	125 VAC	Push-Pull	Square		Gold	UL94 V-0	0.05 in	1.27 mm	125 °C	-65 ░C	All	Surface Mount	2			3 µin	0.076 µm
3M (TC) 45250-600200	0.222 "	5.64 mm	Tin	50	Liquid Crystal Polymer (LCP)	2.54 µm	100 µin	Copper Alloy	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Male Pin	Keying Slot	0.05 in	1.27 mm	125 VAC	Push-Pull	Square	Flash	Gold	UL94 V-0	0.05 in	1.27 mm	125 °C	-65 ░C	All	Through Hole	2	0.094 in	2.4 mm
3M (TC) 45250-620200	0.222 "	5.64 mm	Tin	50	Liquid Crystal Polymer (LCP)	2.54 µm	100 µin	Copper Alloy	Board to Cable/Wire	Header	Solder	Shrouded - 4 Wall	Male Pin	Keying Slot	0.05 in	1.27 mm	125 VAC	Latch Lock/Eject Hooks Short	Square	Flash	Gold	UL94 V-0	0.05 in	1.27 mm	125 °C	-65 ░C	All	Through Hole	2	0.094 in	2.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.92
		72	$ 8.20
		144	$ 7.98
		504	$ 6.69
		1008	$ 5.91

Description

General part information

45250 Series

Connector Header Through Hole, Right Angle 50 position 0.050" (1.27mm)
