Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24314EVM-251 | BQ24314 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Fault Protection | - | Over/Under Voltage, Over Temperature, Over Current |
| Function | Battery Charger | Battery Protection, Battery Charger |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 - 0 °C |
| Operating Temperature | - | 125 ¯C |
| Package / Case | - | 12-VFDFN Exposed Pad, 8-WFDFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 12-VSON (4x3), 8-WSON (2x2) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24314 | BQ24314 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 66.84 | |
BQ24314 Series
CHARGER FRONT END PROTECTION IC WITH 30V MAX VIN AND 5.85V OVP 12-VSON -40 TO 85
| Part | Battery Chemistry | Package / Case | Function | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Mounting Type | Fault Protection | Supplied Contents | Utilized IC / Part | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24314DSJR | Lithium Ion | 12-VFDFN Exposed Pad | Battery Protection | 0 °C | 125 ¯C | 12-VSON (4x3) | Surface Mount | Over Current, Over Temperature, Over/Under Voltage | |||
Texas Instruments BQ24314ADSGR | Lithium Ion | 8-WFDFN Exposed Pad | Battery Protection | -40 °C | 125 ¯C | 8-WSON (2x2) | Surface Mount | Over Current, Over Temperature, Over/Under Voltage | |||
Texas Instruments BQ24314ADSGRG4 | Lithium Ion | 8-WFDFN Exposed Pad | Battery Protection | -40 °C | 125 ¯C | 8-WSON (2x2) | Surface Mount | Over Current, Over Temperature, Over/Under Voltage | |||
Texas Instruments BQ24314DSGT | Lithium Ion | 8-WFDFN Exposed Pad | Battery Protection | 0 °C | 125 ¯C | 8-WSON (2x2) | Surface Mount | Over Current, Over Temperature, Over/Under Voltage | |||
Texas Instruments BQ24314CDSGT | Lithium Ion | 8-WFDFN Exposed Pad | Battery Protection | -40 °C | 125 ¯C | 8-WSON (2x2) | Surface Mount | Over Current, Over Temperature, Over/Under Voltage | |||
Texas Instruments BQ24314EVM-251 | Battery Charger | Board(s) | BQ24314 | Power Management | |||||||
Texas Instruments BQ24314DSGR | Lithium Ion | 8-WFDFN Exposed Pad | Battery Protection | 0 °C | 125 ¯C | 8-WSON (2x2) | Surface Mount | Over Current, Over Temperature, Over/Under Voltage | |||
Texas Instruments BQ24314EVM | Battery Charger | Board(s) | BQ24314 | Power Management | |||||||
Texas Instruments BQ24314CDSGR | Lithium Ion | 8-WFDFN Exposed Pad | Battery Protection | -40 °C | 125 ¯C | 8-WSON (2x2) | Surface Mount | Over Current, Over Temperature, Over/Under Voltage | |||
Texas Instruments BQ24314DSJT | Lithium Ion | 12-VFDFN Exposed Pad | Battery Protection | 0 °C | 125 ¯C | 12-VSON (4x3) | Surface Mount | Over Current, Over Temperature, Over/Under Voltage | |||
Texas Instruments BQ24314ADSGT | Lithium Ion | 8-WFDFN Exposed Pad | Battery Protection | -40 °C | 125 ¯C | 8-WSON (2x2) | Surface Mount | Over Current, Over Temperature, Over/Under Voltage |
Description
General part information
BQ24314 Series

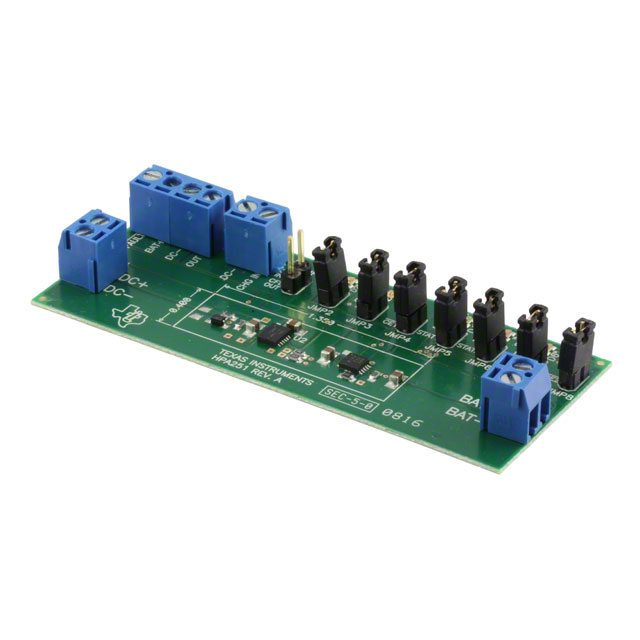

BQ24314 Battery Charger Power Management Evaluation Board
