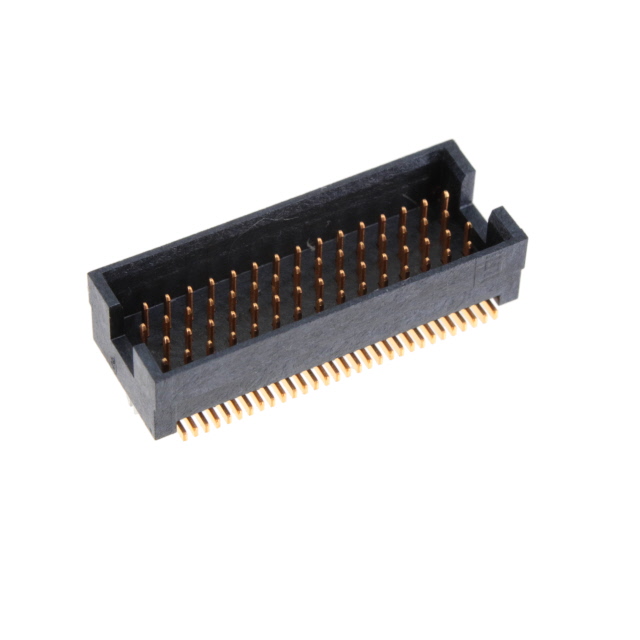

TOLC-115-02-L-Q-LC

Active

Samtec Inc.

QUAD ROW SMT TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTOLC Datasheet Datasheet +1

TOLC-115-02-L-Q-LC

Active

Samtec Inc.

QUAD ROW SMT TERMINAL

Deep-Dive with AI

DocumentsTOLC Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TOLC-115-02-L-Q-LC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	0.1 in
Contact Length - Mating	2.54 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.4 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	6.35 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	60
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

TOLC-115 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Connector Type	Insulation Height	Insulation Height	Shrouding	Contact Finish - Post	Contact Finish - Mating	Contact Type	Contact Material	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Material	Material Flammability Rating	Insulation Color	Current Rating (Amps)	Mated Stacking Heights	Mounting Type	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Features
Samtec Inc. TOLC-115-22-S-Q-TR	0.05 in	1.27 mm	60	Elevated Header	9.25 mm	0.364 in	Shrouded - 4 Wall	Gold	Gold	Male Pin	Phosphor Bronze	Solder	0.1 in	2.54 mm	30 Áin	0.76 Ám	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	Black	2.4 A	10 mm	Surface Mount	Push-Pull	3 µin	0.076 µm	0.05 in	1.27 mm	All	-55 °C	125 °C
Samtec Inc. TOLC-115-22-S-Q-A-K	0.05 in	1.27 mm	60	Elevated Header	9.25 mm	0.364 in	Shrouded - 4 Wall	Gold	Gold	Male Pin	Phosphor Bronze	Solder	0.1 in	2.54 mm	30 Áin	0.76 Ám	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	Black	2.4 A	10 mm	Surface Mount	Push-Pull	3 µin	0.076 µm	0.05 in	1.27 mm	All	-55 °C	125 °C	Board Guide Pick and Place
Samtec Inc. TOLC-115-22-L-Q-A-K	0.05 in	1.27 mm	60	Elevated Header	9.25 mm	0.364 in	Shrouded - 4 Wall	Gold	Gold	Male Pin	Phosphor Bronze	Solder	0.1 in	2.54 mm	10 çin	0.25 çm	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	Black	2.4 A	10 mm	Surface Mount	Push-Pull	3 µin	0.076 µm	0.05 in	1.27 mm	All	-55 °C	125 °C	Board Guide Pick and Place
Samtec Inc. TOLC-115-22-S-Q-K-TR	0.05 in	1.27 mm	60	Elevated Header	9.25 mm	0.364 in	Shrouded - 4 Wall	Gold	Gold	Male Pin	Phosphor Bronze	Solder	0.1 in	2.54 mm	30 Áin	0.76 Ám	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	Black	2.4 A	10 mm	Surface Mount	Push-Pull	3 µin	0.076 µm	0.05 in	1.27 mm	All	-55 °C	125 °C	Pick and Place
Samtec Inc. TOLC-115-12-S-Q-K-TR	0.05 in	1.27 mm	60	Elevated Header	7.25 mm	0.285 in	Shrouded - 4 Wall	Gold	Gold	Male Pin	Phosphor Bronze	Solder	0.1 in	2.54 mm	30 Áin	0.76 Ám	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	Black	2.4 A	8 mm	Surface Mount	Push-Pull	3 µin	0.076 µm	0.05 in	1.27 mm	All	-55 °C	125 °C	Pick and Place
Samtec Inc. TOLC-115-22-S-Q-K	0.05 in	1.27 mm	60	Elevated Header	9.25 mm	0.364 in	Shrouded - 4 Wall	Gold	Gold	Male Pin	Phosphor Bronze	Solder	0.1 in	2.54 mm	30 Áin	0.76 Ám	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	Black	2.4 A	10 mm	Surface Mount	Push-Pull	3 µin	0.076 µm	0.05 in	1.27 mm	All	-55 °C	125 °C	Pick and Place
Samtec Inc. TOLC-115-12-L-Q	0.05 in	1.27 mm	60	Elevated Header	7.25 mm	0.285 in	Shrouded - 4 Wall	Gold	Gold	Male Pin	Phosphor Bronze	Solder	0.1 in	2.54 mm	10 çin	0.25 çm	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	Black	2.4 A	8 mm	Surface Mount	Push-Pull	3 µin	0.076 µm	0.05 in	1.27 mm	All	-55 °C	125 °C
Samtec Inc. TOLC-115-22-F-Q-A	0.05 in	1.27 mm	60	Elevated Header	9.25 mm	0.364 in	Shrouded - 4 Wall	Gold	Gold	Male Pin	Phosphor Bronze	Solder	0.1 in	2.54 mm	3 µin	0.076 µm	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	Black	2.4 A	10 mm	Surface Mount	Push-Pull	3 µin	0.076 µm	0.05 in	1.27 mm	All	-55 °C	125 °C	Board Guide
Samtec Inc. TOLC-115-02-S-Q-K	0.05 in	1.27 mm	60	Header	5.6 mm	0.22 in	Shrouded - 4 Wall	Gold	Gold	Male Pin	Phosphor Bronze	Solder	0.1 in	2.54 mm	30 Áin	0.76 Ám	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	Black	2.4 A	6.35 mm	Surface Mount	Push-Pull	3 µin	0.076 µm	0.05 in	1.27 mm	All	-55 °C	125 °C	Pick and Place
Samtec Inc. TOLC-115-02-L-Q-LC	0.05 in	1.27 mm	60	Header	5.6 mm	0.22 in	Shrouded - 4 Wall	Gold	Gold	Male Pin	Phosphor Bronze	Solder	0.1 in	2.54 mm	10 çin	0.25 çm	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	Black	2.4 A	6.35 mm	Surface Mount	Push-Pull	3 µin	0.076 µm	0.05 in	1.27 mm	All	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 10.39
		10	$ 9.61
		25	$ 9.14

Description

General part information

TOLC-115 Series

Connector Header Surface Mount 60 position 0.050" (1.27mm)
