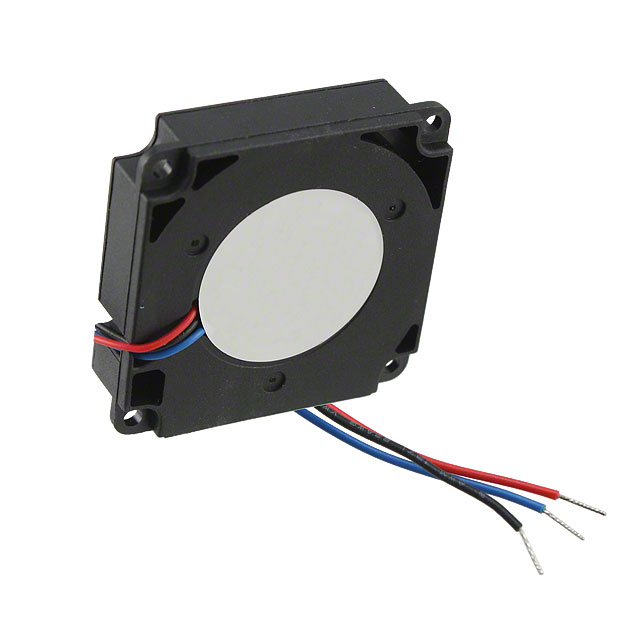

BFB0405HHA-TZP4

Delta Electronics

FAN BLOWER 40X10MM 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Datasheet +2

BFB0405HHA-TZP4

Delta Electronics

FAN BLOWER 40X10MM 5VDC WIRE

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BFB0405HHA-TZP4

Air Flow	0.084 m³/min
Air Flow	3 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	34.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.8 W
RPM	8500 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.564 in H2O
Static Pressure	140.5 Pa
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4 VDC
Weight	12.25 g
Weight	0.027 lb
Width [y]	10 mm

BFB0405 Series

Part	Termination	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Lifetime @ Temp.	Approval Agency	Power (Watts)	Features	Air Flow	Air Flow	Voltage - Rated	RPM	Material - Blade	Fan Type	Weight	Weight	Static Pressure	Static Pressure	Noise	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Ingress Protection
Delta Electronics BFB0405HHA-AF00	3 Wire Leads	Plastic	4 VDC	5.5 V	Ball	30000 Hrs	CE CSA UL VDE	0.8 W	Locked Rotor Protection Speed Sensor (Tach)	0.084 m³/min	3 CFM	5 V	8500 RPM	Plastic	Blower	12.25 g	0.027 lb	0.564 in H2O	140.5 Pa	34.5 dB(A)	10 mm	40 mm	Square	40 mm	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics BFB0405LA-A	2 Wire Leads	Plastic	4 VDC	5.5 V	Ball	30000 Hrs	CE CSA UL VDE	350 mW		0.053 mł/min	1.9 CFM	5 V	5500 RPM	Plastic	Blower	12.25 g	0.027 lb	0.211 in H2O	52.6 Pa	28 dB	10 mm	40 mm	Square	40 mm	70 °C	70 °C	-10 °C	-10 °C	60 mA
Delta Electronics BFB0405HHA-TZP4	3 Wire Leads	Plastic	4 VDC	5.5 V	Ball	30000 Hrs	CE CSA UL VDE	0.8 W	Locked Rotor Protection Speed Sensor (Tach)	0.084 m³/min	3 CFM	5 V	8500 RPM	Plastic	Blower	12.25 g	0.027 lb	0.564 in H2O	140.5 Pa	34.5 dB(A)	10 mm	40 mm	Square	40 mm	70 °C	70 °C	-10 °C	-10 °C		IP55 - Dust Protected Water Resistant
Delta Electronics BFB0405HHA-AR00	3 Wire Leads	Plastic	4 VDC	5.5 V	Ball	30000 Hrs	CE CSA UL VDE	0.8 W	Locked Rotor Sensor	0.084 m³/min	3 CFM	5 V	8500 RPM	Plastic	Blower	12.25 g	0.027 lb	0.564 in H2O	140.5 Pa	34.5 dB(A)	10 mm	40 mm	Square	40 mm	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics BFB0405HHA-A	2 Wire Leads	Plastic	4 VDC	5.5 V	Ball	30000 Hrs	CE CSA UL VDE	0.8 W		0.084 m³/min	3 CFM	5 V	8500 RPM	Plastic	Blower	12.25 g	0.027 lb	0.564 in H2O	140.5 Pa	34.5 dB(A)	10 mm	40 mm	Square	40 mm	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics BFB0405HA-A	2 Wire Leads	Plastic	4.5 V	5.5 V	Ball	30000 Hrs	CE CSA UL VDE	550 mW		0.073 mł/min	2.6 CFM	5 V	7500 RPM	Plastic	Blower	12.25 g	0.027 lb	0.427 in H2O	106.4 Pa	32.5 dB	10 mm	40 mm	Square	40 mm	70 °C	70 °C	-10 °C	-10 °C	110 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	640	$ 11.36

Description

General part information

BFB0405 Series

Fan Blower 5VDC Square - 40mm L x 40mm H Ball 3.0 CFM (0.084m³/min) 3 Wire Leads
