R163051001

Active

Radiall USA, Inc.

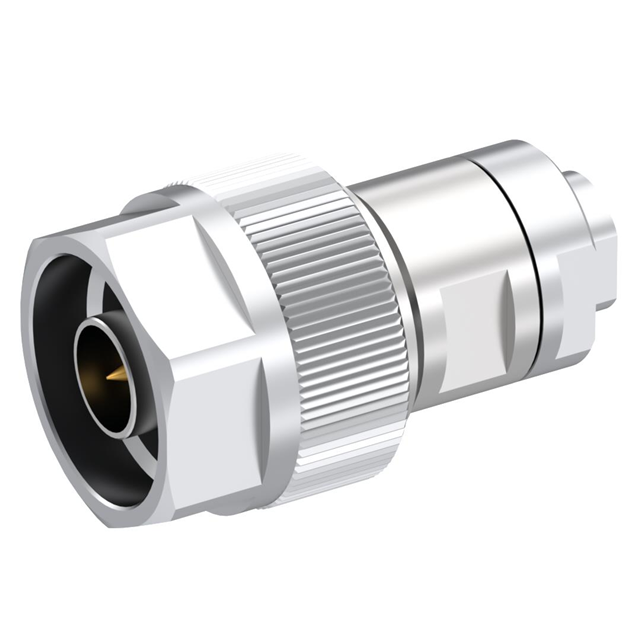

N 18 / STRAIGHT PLUG SOLDER TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N 18 / STRAIGHT PLUG SOLDER TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R163051001

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Contact Termination	Dielectric Material	Impedance	Insertion Loss	Number of Ports	Frequency - Max [Max]	Voltage Rating	Connector Style	Center Contact Material	Body Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Ingress Protection	Mounting Type	Mating Cycles	Housing Color	Center Contact Plating
Radiall USA, Inc. R163051001	Solder	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	50 Ohms	0.15 dB	1	18 GHz	500 V	N Type	Beryllium Copper	Stainless Steel	Male Pin Plug	125 °C	-40 °C	Solder	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	500	Silver	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 250.79

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
