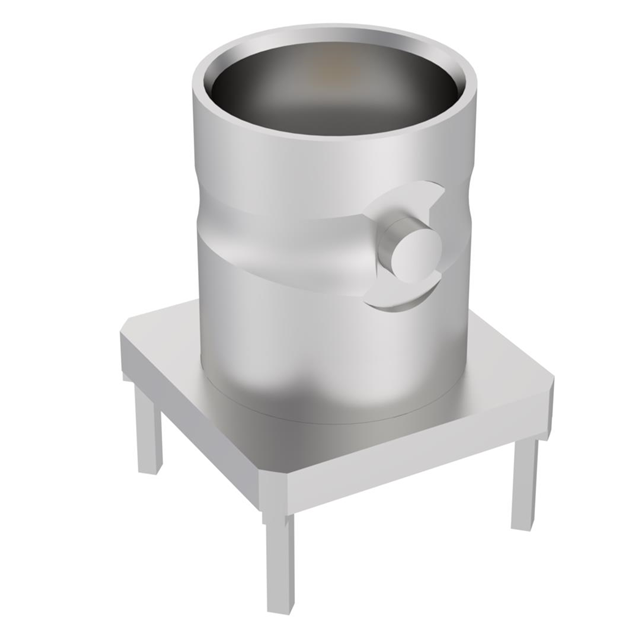

BNC F STR PCB C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC F STR PCB C100

Technical Specifications

Parameters and characteristics for this part

Specification	R141426161

Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-35 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Frequency - Max [Max]	Mating Cycles	Center Contact Material	Housing Color	Impedance	Center Contact Plating	Shield Termination	Number of Ports	Body Material	Dielectric Material	Mounting Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Fastening Type	Contact Termination	Body Finish	Connector Type
Radiall USA, Inc. R141426000W	4 GHz	500	Beryllium Copper	Silver	50 Ohms	Gold	Solder	1	Brass	Polytetrafluoroethylene (PTFE)	Through Hole	335 V	-65 ░C	165 °C	BNC	Bayonet Lock	Solder	Nickel	Female Socket Jack
Radiall USA, Inc. R141426000	4 GHz	500	Beryllium Copper	Silver	50 Ohms	Gold	Solder	1	Brass	Polytetrafluoroethylene (PTFE)	Through Hole	500 V	-65 ░C	165 °C	BNC	Bayonet Lock	Solder	Nickel	Female Socket Jack
Radiall USA, Inc. R141426161	1.5 GHz		Brass		50 Ohms	Gold	Solder	1	Brass	Polytetrafluoroethylene (PTFE)	Through Hole	500 V	-35 °C	70 °C	BNC	Bayonet Lock	Solder		Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Through Hole Solder
