PCH-105L2M,000
ObsoleteTE Connectivity Potter & Brumfield Relays

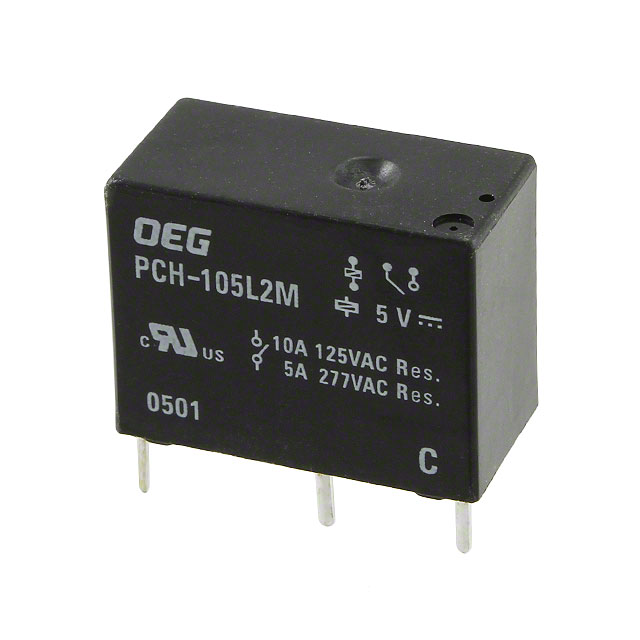

RELAY GEN PURPOSE SPST 5A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCH-105L2M,000
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 5A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCH-105L2M,000 |
|---|---|
| Approval Agency | CQC, VDE, cURus |
| Coil Current | 40 mA |
| Coil Insulation | Class F |
| Coil Resistance | 125 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 1385 VA, 150 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 277 VAC, 30 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.66 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.11 | |||
Description
General part information
PCH-105 Series
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Documents
Technical documentation and resources
