102TL1-3D

Active

Honeywell Sensing and Productivity Solutions

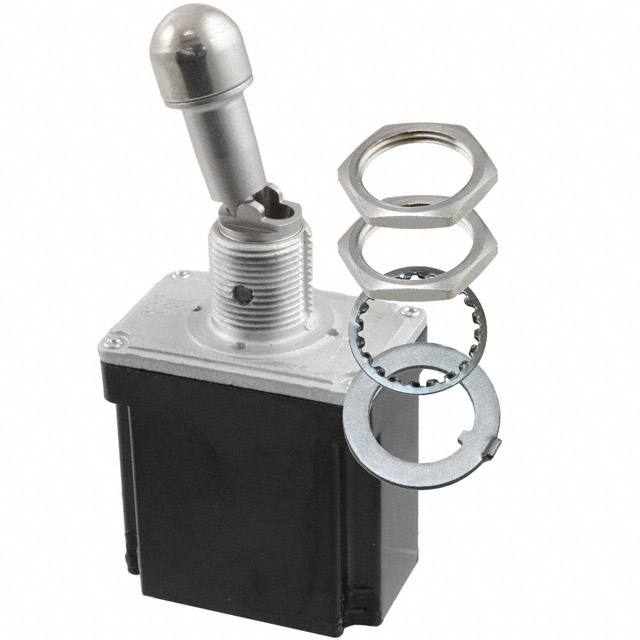

SWITCH TOGGLE DPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

102TL1-3D

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 15A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 263.96

Description

General part information

102TL1 Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102TL1-3D	102TL1 Series

Actuator Length [x]	26.67 mm	17.27 - 26.67 mm
Actuator Material	Nickel Plated	Nickel Plated
Actuator Type	Locking Lever	Standard Round, Locking Lever
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT, DPST-NO, SP3T
Current Rating (Amps)	15 A	10 - 15 A
Features	-	Jumper needed to achieve triple throw
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	Environment Sealed	Environment Sealed
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-On	On-Mom, On-Off-Mom, On-On, Off-Mom, On-On-On, On-Off-On
Termination Style	IWTS	IWTS
Voltage Rating - AC	125 V	125 V

102TL1 Series

SWITCH TOGGLE DPDT 10A 125V

Part	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Actuator Type	Termination Style	Switch Function	Actuator Length [x]	Actuator Material	Circuit	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Bushing Thread	Illumination	Features
Honeywell Sensing and Productivity Solutions 102TL1-8	125 V	71 °C	-65 ░C	Environment Sealed	Standard Round	IWTS	On-Mom	17.27 mm	Nickel Plated	DPDT	12.4 mm	10 A	15/32-32	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL1-5K	125 V	71 °C	-65 ░C	Environment Sealed	Locking Lever	IWTS	On-Off-Mom	26.67 mm	Nickel Plated	DPDT	12.4 mm	10 A	15/32-32	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL1-5	125 V	71 °C	-65 ░C	Environment Sealed	Standard Round	IWTS	On-Off-Mom	17.27 mm	Nickel Plated	DPDT	12.4 mm	10 A	15/32-32	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL1-3F	125 V	71 °C	-65 ░C	Environment Sealed	Locking Lever	IWTS	On-On	26.67 mm	Nickel Plated	DPDT	12.4 mm	15 A	15/32-32	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL1-6	125 V	71 °C	-65 ░C	Environment Sealed	Standard Round	IWTS	Off-Mom	17.27 mm	Nickel Plated	DPST-NO	12.4 mm	10 A	15/32-32	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL1-10	125 V	71 °C	-65 ░C	Environment Sealed	Standard Round	IWTS	On-On-On	17.27 mm	Nickel Plated	SP3T	12.4 mm	15 A	15/32-32	Non-Illuminated	Jumper needed to achieve triple throw
Honeywell Sensing and Productivity Solutions 102TL1-1	125 V	71 °C	-65 ░C	Environment Sealed	Standard Round	IWTS	On-Off-On	17.27 mm	Nickel Plated	DPDT	12.4 mm	15 A	15/32-32	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL1-3D	125 V	71 °C	-65 ░C	Environment Sealed	Locking Lever	IWTS	On-On	26.67 mm	Nickel Plated	DPDT	12.4 mm	15 A	15/32-32	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL1-3G	125 V	71 °C	-65 ░C	Environment Sealed	Locking Lever	IWTS	On-On	26.67 mm	Nickel Plated	DPDT	12.4 mm	15 A	15/32-32	Non-Illuminated
