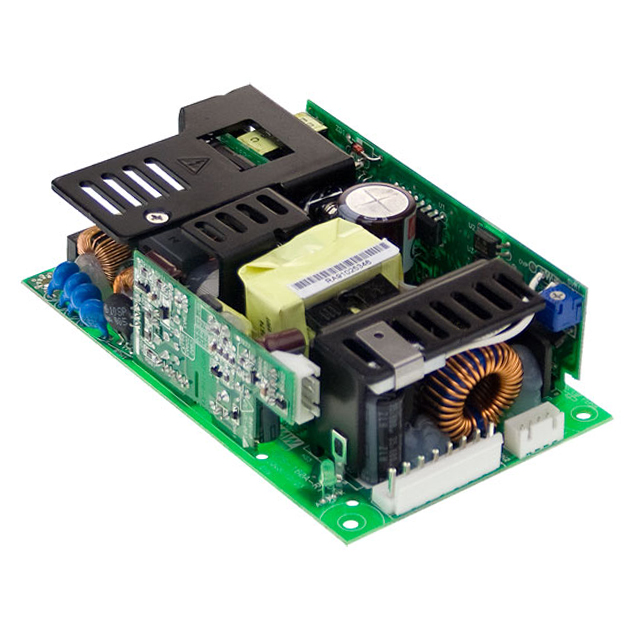

Specification	RPT-160A

Applications	Medical
Approval Agency	cURus, CB, TUV, CE
Current - Output 1	9 A
Current - Output 2	3.8 A
Current - Output 3	600 mA
Efficiency	84 %
Features	Universal Input, Adjustable Output
Minimum Load Required	Yes
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	141 W, 96 W
Size / Dimension Height	1.36 in
Size / Dimension Length	5 in
Size / Dimension Width	3 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	127 VDC
Voltage - Isolation	4000 Vpk
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-5 V

RPT-160 Series

Part	Efficiency	Mounting Type	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Applications	Voltage - Output 2	Features	Current - Output 1	Current - Output 2	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Isolation	Current - Output 3	Voltage - Input (DC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (DC) Minimum	Approval Agency	Type	Number of Outputs	Voltage - Output 1	Voltage - Output 3	Minimum Load Required
MEAN WELL USA Inc. RPT-160D	83 %	Chassis Mount	5 in	3 in	1.36 in	Medical	12 V	Adjustable Output Universal Input	8 A	2.6 A	95 W 144 W	70 °C	-20 °C	4000 Vpk	1 A	370 V	90 V	264 V	127 VDC	CB CE cURus TUV	Open Frame	3	5 V	24 V	Yes
MEAN WELL USA Inc. RPT-160A	84 %	Chassis Mount	5 in	3 in	1.36 in	Medical	12 V	Adjustable Output Universal Input	9 A	3.8 A	96 W 141 W	70 °C	-20 °C	4000 Vpk	600 mA	370 V	90 V	264 V	127 VDC	CB CE cURus TUV	Open Frame	3	5 V	-5 V	Yes
MEAN WELL USA Inc. RPT-160C	83 %	Chassis Mount	5 in	3 in	1.36 in	Medical	15 V	Adjustable Output Universal Input	9 A	2.6 A	96 W 139 W	70 °C	-20 °C	4000 Vpk	800 mA	370 V	90 V	264 V	127 VDC	CB CE cURus TUV	Open Frame	3	5 V	-15 V	Yes
