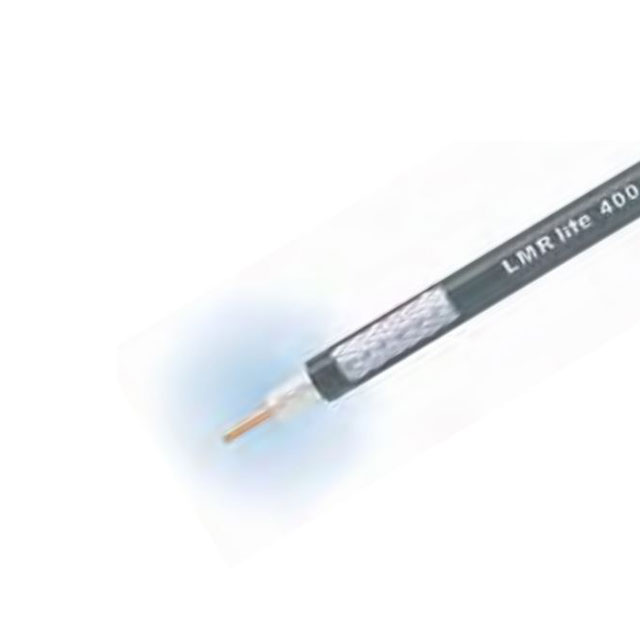

LMR-LW400-DB

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUMINUM BRAID,

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUMINUM BRAID,

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-LW400-DB	LMR-LW4 Series

Cable Type	Coaxial	Coaxial
Conductor Material	Aluminum, Copper Coated	Aluminum, Copper Coated
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	7.24 mm	7.24 mm
Dielectric Diameter [diameter]	0.285 in	0.285 in
Dielectric Material	Foam Polyethylene (FPE)	Foam Polyethylene (FPE)
Features	Direct Burial, Watertight	Direct Burial, Watertight
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in	0.405 in
Jacket (Insulation) Material	Polyethylene (PE)	Polyethylene (PE)
Jacket Color	Black	Black
Length	-	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Aluminum	Aluminum
Shield Type	Braid	Braid
Spool Size	-	500 '
Spool Size	-	152.4 m
VoP, Velocity of Propagation	84	84

STANDARD CABLE, ALUMINUM BRAID,

Part	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Shield Material	Impedance	Jacket (Insulation) Material	VoP, Velocity of Propagation	Features	Shield Type	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Material	Length	Spool Size	Spool Size
Amphenol Times Microwave Systems LMR-LW400-DB	85 °C	-40 °C	Black	Coaxial	10.29 mm	0.405 in	Solid	Aluminum	50 Ohms	Polyethylene (PE)	84	Direct Burial, Watertight	Braid	Aluminum, Copper Coated	7.24 mm	0.285 in	Foam Polyethylene (FPE)
Amphenol Times Microwave Systems LMR-LW400	85 °C	-40 °C	Black	Coaxial	10.29 mm	0.405 in	Solid	Aluminum	50 Ohms	Polyethylene (PE)	84		Braid	Aluminum, Copper Coated	7.24 mm	0.285 in	Foam Polyethylene (FPE)	Enter Number of Feet in Order Quantity	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.17

General part information

Coaxial Cable 50 Ohms
