Q-2N03U00080.5M

Active

Amphenol Custom Cable

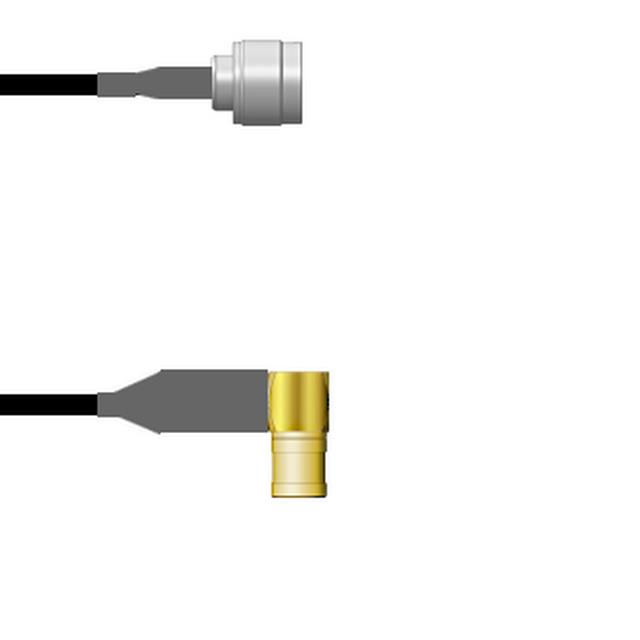

CBL ASSY SMB-NTYPE PLG-PL 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2N03U00080.5M

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLG-PL 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2N03U00080.5M

1st Connector	Right Angle, SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2N03U0 Series

Part	2nd Connector Mounting Type	Frequency - Max [Max]	Length	Length	Cable Type	2nd Contact Gender	1st Connector Mounting Type	Color	Style	2nd Connector	1st Connector	Overall Impedance	1st Contact Gender	Features	Length [x]	Length [x]	Length	Length [x]
Amphenol Custom Cable Q-2N03U0008012i	Free Hanging (In-Line)	4 GHz	12 "	304.8 mm	RG-58	Male	Free Hanging (In-Line)	Black	SMB to N-Type	N-Type Plug	Right Angle SMB Plug	50 Ohms	Female	Shielded
Amphenol Custom Cable Q-2N03U0008009i	Free Hanging (In-Line)	4 GHz	9 "	228.6 mm	RG-58	Male	Free Hanging (In-Line)	Black	SMB to N-Type	N-Type Plug	Right Angle SMB Plug	50 Ohms	Female	Shielded
Amphenol Custom Cable Q-2N03U0008018i	Free Hanging (In-Line)	4 GHz			RG-58	Male	Free Hanging (In-Line)	Black	SMB to N-Type	N-Type Plug	Right Angle SMB Plug	50 Ohms	Female	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2N03U00081.5M	Free Hanging (In-Line)	4 GHz	59.1 in	1.5 m	RG-58	Male	Free Hanging (In-Line)	Black	SMB to N-Type	N-Type Plug	Right Angle SMB Plug	50 Ohms	Female	Shielded			4.9 ft
Amphenol Custom Cable Q-2N03U0008003M	Free Hanging (In-Line)	4 GHz	118.1 in	3 m	RG-58	Male	Free Hanging (In-Line)	Black	SMB to N-Type	N-Type Plug	Right Angle SMB Plug	50 Ohms	Female	Shielded			9.8 '
Amphenol Custom Cable Q-2N03U0008084i	Free Hanging (In-Line)	4 GHz	84 in	2.1 m	RG-58	Male	Free Hanging (In-Line)	Black	SMB to N-Type	N-Type Plug	Right Angle SMB Plug	50 Ohms	Female	Shielded			7 ft
Amphenol Custom Cable Q-2N03U00080.5M	Free Hanging (In-Line)	4 GHz	19.69 "	50 cm	RG-58	Male	Free Hanging (In-Line)	Black	SMB to N-Type	N-Type Plug	Right Angle SMB Plug	50 Ohms	Female	Shielded
Amphenol Custom Cable Q-2N03U0008.25M	Free Hanging (In-Line)	4 GHz			RG-58	Male	Free Hanging (In-Line)	Black	SMB to N-Type	N-Type Plug	Right Angle SMB Plug	50 Ohms	Female	Shielded		250 mm		9.843 "
Amphenol Custom Cable Q-2N03U00082.5M	Free Hanging (In-Line)	4 GHz	98.4 in	2.5 m	RG-58	Male	Free Hanging (In-Line)	Black	SMB to N-Type	N-Type Plug	Right Angle SMB Plug	50 Ohms	Female	Shielded			8.2 '
Amphenol Custom Cable Q-2N03U0008006i	Free Hanging (In-Line)	4 GHz	6 in	152.4 mm	RG-58	Male	Free Hanging (In-Line)	Black	SMB to N-Type	N-Type Plug	Right Angle SMB Plug	50 Ohms	Female	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 76.55
		25	$ 75.07
		50	$ 73.58
		100	$ 72.09
		250	$ 70.60

Description

General part information

Q-2N03U0 Series

Cable Assembly Coaxial SMB to N-Type RG-58 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
