FHG.1B.303.CLAD72Z

Active

LEMO

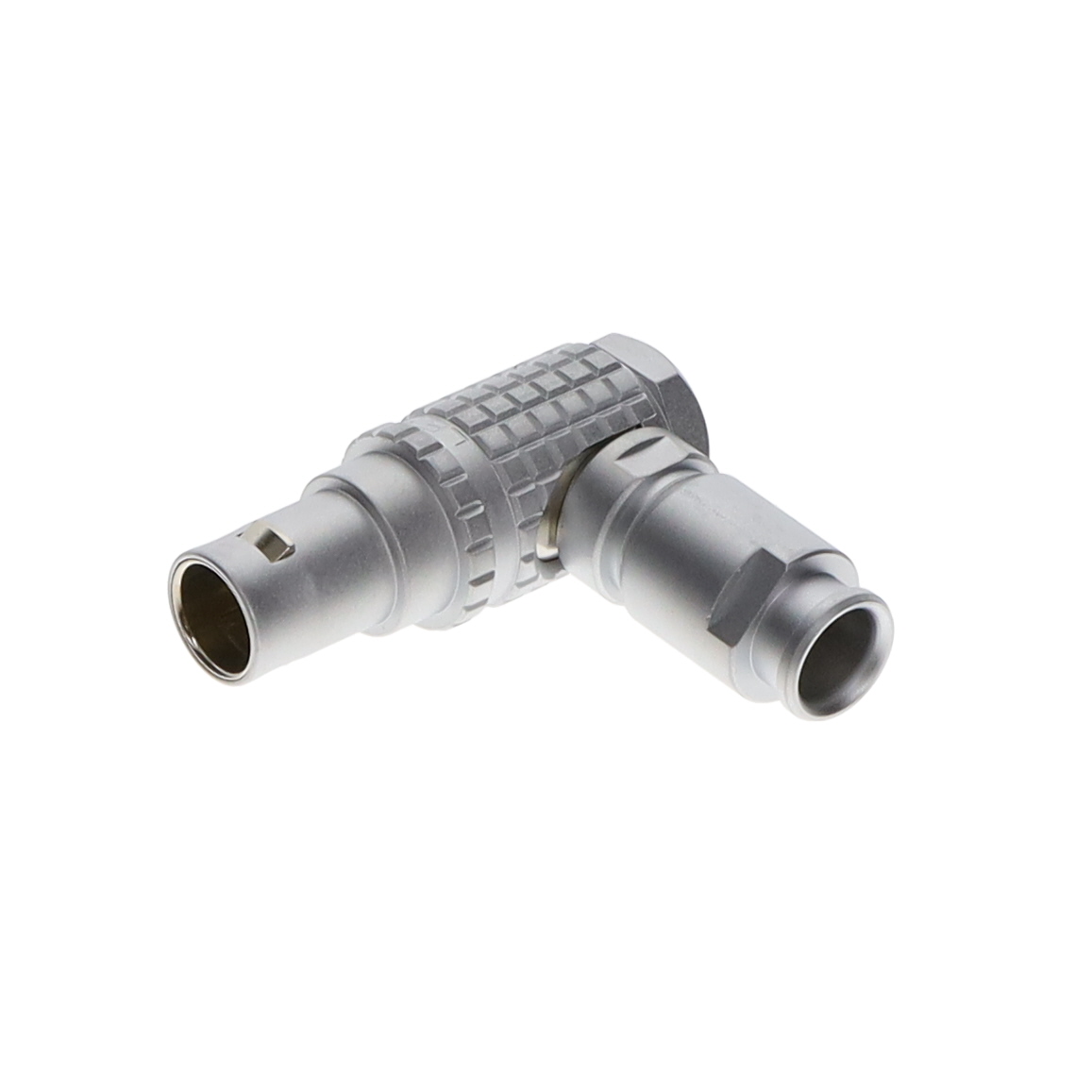

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FHG.1B.303.CLAD72Z

Active

LEMO

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FHG.1B.303.CLAD72Z	FHG.1B Series

	-	-
Accessory Type	-	Locknut, Midpiece
Backshell Material, Plating	Brass, Chrome	Brass, Chrome, Aluminum, Nickel
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	3.1 - 4.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.087 in
Cable Opening	-	2.7 mm
Cable Opening	-	2.2 mm
Cable Opening	-	0.106 in
Cable Opening	-	6.2 mm
Cable Opening	-	5.2 - 7.2 mm
Cable Opening	-	0.205 - 0.283 in
Cable Opening	-	0.244 - 0.299 in
Cable Opening	-	0.122 - 0.165 in
Cable Opening	-	7.6 mm
Cable Opening [custom]	0.283 in, 0.244 in	0.244 - 0.283 in
Cable Opening [custom]	7.2 mm, 6.2 mm	6.2 - 7.2 mm
Color	Silver	Silver, Gray
Connector Type	Plug, Male Pins	Plug, Male Pins, Insert Shell
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	12 A	1.5 - 15 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell
For Use With/Related Products	-	1B Series Plug
Housing Color	-	Silver
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material	-	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Note	-	Contacts Not Included; Insert Not Included
Number of Positions	-	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Nickel
Shell Material	Brass	Brass, Aluminum
Shell Size - Insert	303	302 - 731
Shielding	Shielded	Shielded
Termination	-	Crimp

FHG.1B Series

CONN PLUG MALE 4P GOLD SLDR CUP

...

Part	Connector Type	Contact Finish - Mating	Contact Material	Ingress Protection	Shielding	Current Rating (Amps)	Color	Shell Size - Insert	Orientation	Shell Finish	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Insert Material	Mounting Type	Material Flammability Rating	Shell Material	Termination	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Material	Accessory Type	For Use With/Related Products
LEMO FHG.1B.304.CLAD52	Male Pins, Plug	Gold	Brass	IP50	Shielded	10 A	Silver	304	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	4	Backshell	0.165 in, 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass
LEMO FHG.1B.302.CYCD52Z	Male Pins, Plug	Gold	Brass	IP50	Shielded	15 A	Silver	302	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	2	Backshell	0.165 in, 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass	Crimp
LEMO FHG.1B.314.CLAD52	Male Pins, Plug	Gold	Brass	IP50	Shielded	2 A	Silver	314	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	14	Backshell	0.165 in, 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass
LEMO FHG.1B.305.CYCD72Z	Male Pins, Plug	Gold	Brass	IP50	Shielded	9 A	Silver	305	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C		Backshell				Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass	Crimp	0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FHG.1B.310.CLAD52	Male Pins, Plug	Gold	Brass	IP50	Shielded	2.5 A	Silver	310	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	10	Backshell	0.165 in, 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass
LEMO FHG.1B.308.CLAM27Z	Male Pins, Plug	Gold	Brass	IP50	Shielded	5 A	Silver	308	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	8	Backshell				Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass				0.087 in	2.7 mm	2.2 mm	0.106 in
LEMO FHG.1B.307.CLAD62	Male Pins, Plug	Gold	Brass	IP50	Shielded	7 A	Silver	307	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	7	Backshell				Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass								6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO FHG.1B.140.LC							Silver																															Brass	Locknut	1B Series Plug
LEMO FHG.1B.303.CLAD72Z	Male Pins, Plug	Gold	Brass	IP50	Shielded	12 A	Silver	303	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C		Backshell				Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass		0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FHG.1B.302.CLAD52	Male Pins, Plug	Gold	Brass	IP50	Shielded	15 A	Silver	302	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	2	Backshell	0.165 in, 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 88.12
		10	$ 80.86
		25	$ 77.75
		50	$ 75.16
		100	$ 71.01

Description

General part information

FHG.1B Series

3 Position Circular Connector Plug, Male Pins Solder Cup
