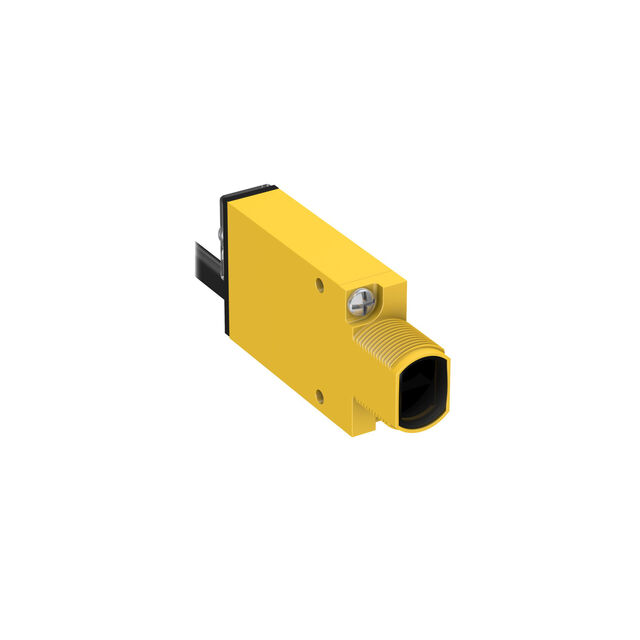

SMU315LP W/30

Active

BANNER ENGINEERING

SMU315LP W/30UNIV VOLTAGE POLORI

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SMU315LP W/30UNIV VOLTAGE POLORI

Technical Specifications

Parameters and characteristics for this part

Specification	SMU315LP W/30

Cable Length	354.33 in
Cable Length	9 m
Connection Method	Cable
Ingress Protection	IP67, NEMA 4X, IEC, NEMA 4, NEMA 12, NEMA 3, NEMA 2, NEMA 13, NEMA 6, NEMA 3S, NEMA 1
Light Source	RED (650nm)
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Output Configuration	SPDT
Response Time	20 ms
Sensing Distance	3000 mm
Sensing Distance	118.11 in
Sensing Method	Polarized, Retroreflective
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Output Configuration	Cable Length	Cable Length	Connection Method	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Sensing Distance	Sensing Distance	Ingress Protection	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time
BANNER ENGINEERING SMU315DQDP	SPDT	78.74 in	2 m	Cable	55 °C	-20 C	Diffuse	380 mm	14.961 in	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	Infrared	240 VDC 240 VAC	24 VAC 24 V	20 ms
BANNER ENGINEERING SMU315LP W/30	SPDT	354.33 in	9 m	Cable	55 °C	-20 C	Polarized Retroreflective	3000 mm	118.11 in	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6	RED (650nm)	240 VAC	24 VAC	20 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 258.00

General part information

Retroreflective, Polarized Optical Sensor 118.110" (3m) SPDT
