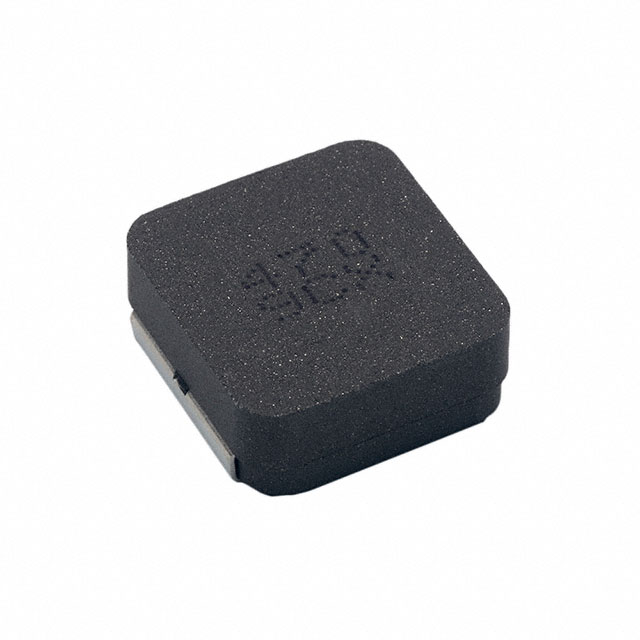

MPXV1D1770L330
ActiveKEMET
POWER INDUCTOR (SMD), AEC-Q200, 33 ΜH, 7.5 A, SHIELDED, 12 A, MPXV SERIES
Deep-Dive with AI
Search across all available documentation for this part.
MPXV1D1770L330
ActiveKEMET
POWER INDUCTOR (SMD), AEC-Q200, 33 ΜH, 7.5 A, SHIELDED, 12 A, MPXV SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPXV1D1770L330 |
|---|---|
| Current Rating (Amps) | 7.5 A |
| DC Resistance (DCR) [Max] | 47.3 mOhm |
| Frequency - Self Resonant | 3.5 MHz |
| Height - Seated (Max) [Max] | 7 mm |
| Height - Seated (Max) [Max] | 0.276 " |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.669 " |
| Size / Dimension [y] | 0.673 in |
| Size / Dimension [y] | 17.1 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MPXV1D1770 Series
33 µH Shielded Inductor 7.5 A 47.3mOhm Max Nonstandard
