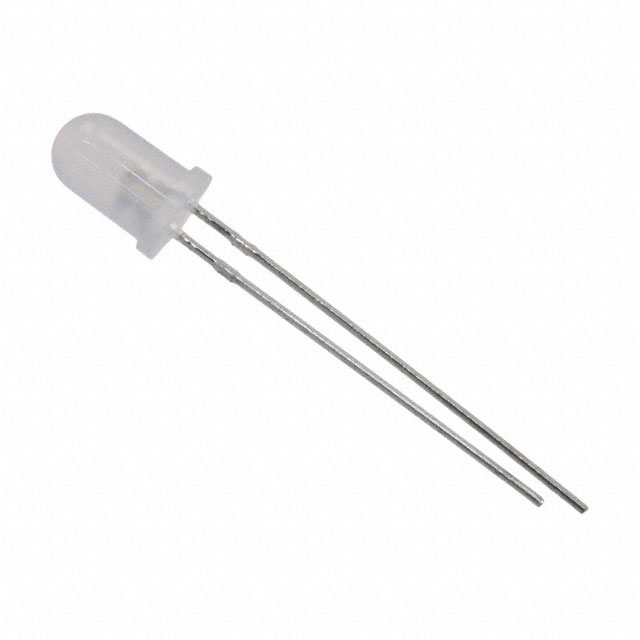

WP57GYW

Active

Kingbright

LED GRN/YLW DIFFUSED T-1 3/4 T/H

Search across all available documentation for this part.

Active

Kingbright

LED GRN/YLW DIFFUSED T-1 3/4 T/H

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RED/YLW DIFFUSED T-1 3/4 T/H

Part	Millicandela Rating	Height (Max) [Max] [z]	Lens Style	Viewing Angle	Wavelength - Dominant [custom]	Size / Dimension [diameter]	Supplier Device Package	Color	Lens Color	Package / Case	Mounting Type	Configuration	Voltage - Forward (Vf) (Typ)	Lens Transparency	Lens Size	Lens Size	Wavelength - Peak	Current - Test	Current - Test	Wavelength - Dominant
Kingbright WP57EYW	10 mcd, 14 mcd	8.6 mm	Round with Domed Top	60 °	588 nm, 617 nm	5 mm	T-1 3/4	Red, Yellow	White	Radial	Through Hole	Bidirectional	2 V, 2.1 V	Diffused	T-1 3/4	5 mm	590 nm, 627 nm	20mA Red, 20mA Yellow
Kingbright WP57IID	12 mcd	8.6 mm	Round with Domed Top	60 °		5 mm	T-1 3/4	Red	Red	Radial	Through Hole	Standard	2 V	Diffused	T-1 3/4	5 mm	627 nm		20 mA	617 nm
Kingbright WP57YYD	12 mcd	8.6 mm	Round with Domed Top	60 °		5 mm	T-1 3/4	Yellow	Yellow	Radial	Through Hole	Standard	2.1 V	Diffused	T-1 3/4	5 mm	590 nm		20 mA	588 nm
Kingbright WP57GYW	10 mcd, 30 mcd	8.6 mm	Round with Domed Top	60 °		5 mm	T-1 3/4	Green, Yellow	White	Radial	Through Hole	Bidirectional	2.1 V, 2.2 V	Diffused	T-1 3/4	5 mm	565 nm, 590 nm		20 mA, 20 mA	568 nm, 588 nm
Kingbright WP57EGW	14 mcd, 30 mcd	8.6 mm	Round with Domed Top	30 °		5 mm	T-1 3/4	Green, Red	White	Radial	Through Hole	Bidirectional	2 V, 2.2 V	Diffused	T-1 3/4	5 mm	565 nm, 627 nm		20 mA, 20 mA	568 nm, 617 nm
Kingbright WP57GGD	20 mcd	8.6 mm	Round with Domed Top	60 °		5 mm	T-1 3/4	Green	Green	Radial	Through Hole	Standard	2.2 V	Diffused	T-1 3/4	5 mm	565 nm		20 mA	568 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Yellow 568nm Green, 588nm Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow Radial
