Specification	5767042-6

Connector Type	Plug, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Ground Bus (Plane), Board Guide
Height Above Board	0.727 in
Mated Stacking Height Options	18.75mm, 27.8mm
Mounting Type	Surface Mount
Number of Positions	228
Number of Rows	2
Pitch	0.025 in

5767042 Series

Part	Number of Positions	Contact Finish	Pitch	Contact Finish Thickness	Features	Mated Stacking Height Options	Number of Rows	Height Above Board	Connector Type	Mounting Type
TE Connectivity AMP Connectors 5767042-6	228	Gold	0.025 in	30 µin	Board Guide Ground Bus (Plane)	18.75mm 27.8mm	2	0.727 in	Outer Shroud Contacts Plug	Surface Mount

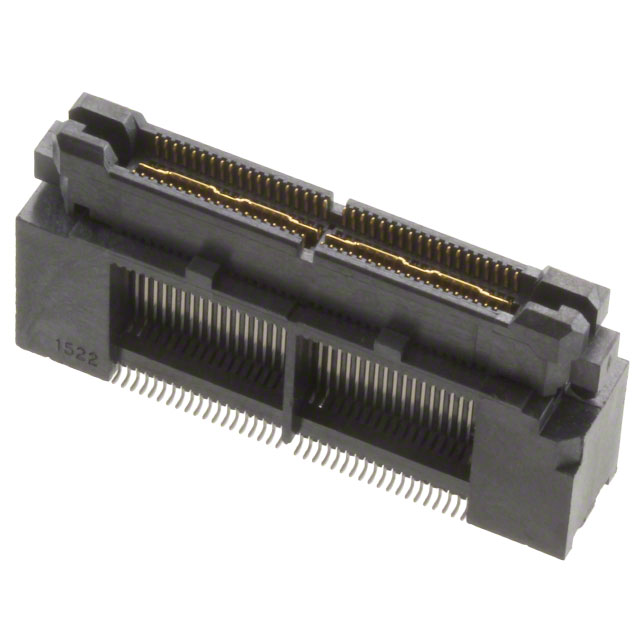

TE Connectivity AMP Connectors 5767042-2	76	Gold	0.025 in	30 µin	Board Guide Ground Bus (Plane)	18.75mm 27.8mm	2	0.727 in	Outer Shroud Contacts Plug	Surface Mount
