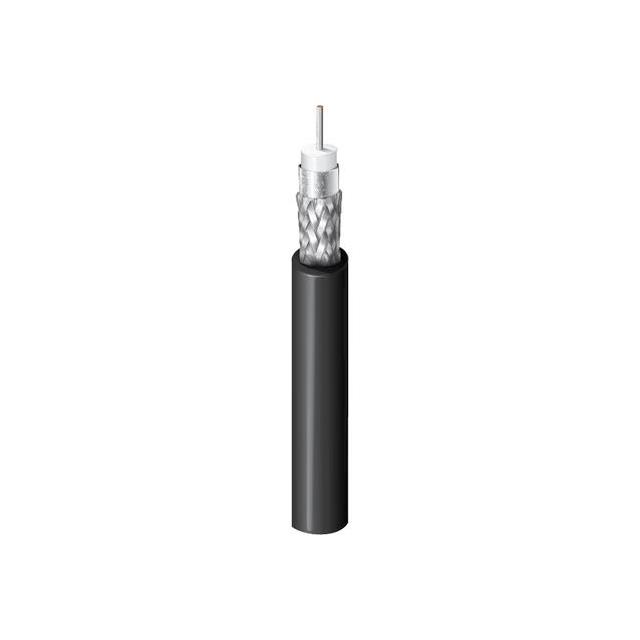

4505R 0031000

Active

Belden Inc.

#20 PE/GIFHDLDPE SH FRPVC ORANGE

Search across all available documentation for this part.

Active

Belden Inc.

#20 PE/GIFHDLDPE SH FRPVC ORANGE

Technical Specifications

Parameters and characteristics for this part

Specification	4505R 0031000

Cable Group	RG-59
Cable Type	Coaxial - Riser
Conductor Material	Copper, Silver Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.145 "
Dielectric Diameter [diameter]	3.68 mm
Jacket (Insulation) Diameter [diameter]	5.92 mm
Jacket (Insulation) Diameter [diameter]	0.233 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange
Length	304.8 m
Length	1000 ft
Shield Coverage	95 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Video
VoP, Velocity of Propagation	83
Wire Gauge	20 AWG

Part	Jacket Color	Shield Material	Wire Gauge	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Cable Type	Jacket (Insulation) Material	Cable Group	Conductor Strand	VoP, Velocity of Propagation	Shield Coverage	Length	Length
Belden Inc. 4505R 0031000	Orange	Aluminum Polyester Copper Tinned	20 AWG	0.145 "	3.68 mm	Braid Foil	Copper Silver Coated	5.92 mm	0.233 "	Video	Coaxial - Riser	Poly-Vinyl Chloride (PVC)	RG-59	Solid	83	95 % 100 %	304.8 m	1000 ft
Belden Inc. 4505R 0101000	Black	Aluminum Polyester Copper Tinned	20 AWG	0.145 "	3.68 mm	Braid Foil	Copper Silver Coated	5.92 mm	0.233 "	Video	Coaxial - Riser	Poly-Vinyl Chloride (PVC)	RG-59	Solid	83	95 % 100 %	304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.33

General part information

Coaxial - Riser Cable 20 AWG RG-59 1000.0' (304.80m)

Technical documentation and resources
