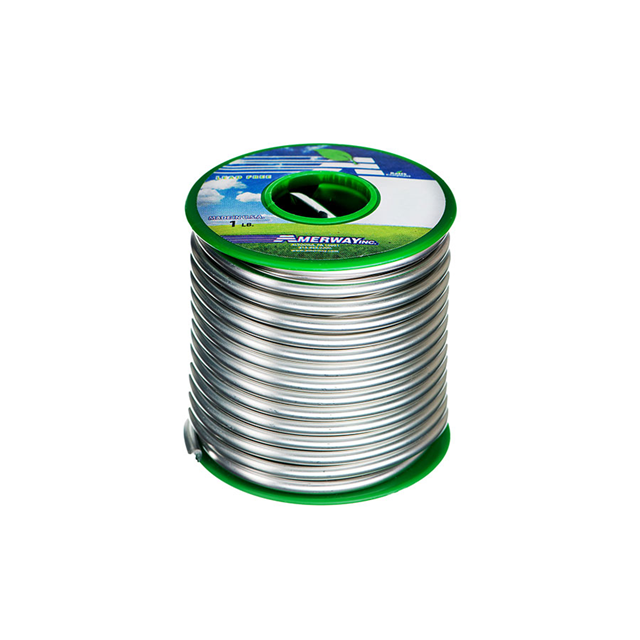

CWSAC WRMAP .015

Active

Amerway Inc

SN96.5AG3CU.5 WRMAP3 .015 1# SPL

Deep-Dive with AI

Search across all available documentation for this part.

CWSAC WRMAP .015

Active

Amerway Inc

SN96.5AG3CU.5 WRMAP3 .015 1# SPL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CWSAC WRMAP .015	CWSAC Series

Composition	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	Sn96.5Ag3Cu0.5 (96.5/3/0.5)
Diameter [diameter]	0.015 in	0.015 - 0.062 in
Diameter [diameter]	0.38 mm	0.38 - 1.57 mm
Flux Type	Rosin Mildly Activated (RMA)	Rosin Mildly Activated (RMA), No-Clean, Rosin Activated (RA)
Form	Spool, 1 lb (454 g)	Spool, 1 lb (454 g)
Melting Point [custom]	428 °F	428 °F
Melting Point [custom]	220 °C	220 °C
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	Room Temperature	Room Temperature
Type	Wire Solder	Wire Solder
Weight	453.59 g	453.59 g
Weight	1 lbs	1 lbs
Wire Gauge	27 AWG	13.5 - 27 AWG

CWSAC Series

SN96.5AG3CU.5 WRMAP3 .062 1# SPL

Part	Storage/Refrigeration Temperature	Weight	Weight	Diameter [diameter]	Diameter [diameter]	Shelf Life Start	Flux Type	Composition	Shelf Life	Type	Melting Point [custom]	Melting Point [custom]	Wire Gauge	Form
Amerway Inc CWSAC WRMAP3 .062	Room Temperature	453.59 g	1 lbs	0.062 in	1.57 mm	Date of Manufacture	Rosin Mildly Activated (RMA)	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	60 Months	Wire Solder	428 °F	220 °C	13.5 AWG	Spool, 1 lb (454 g)
Amerway Inc CWSAC NCCW2.2 .062	Room Temperature	453.59 g	1 lbs	0.062 in	1.57 mm	Date of Manufacture	No-Clean	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	60 Months	Wire Solder	428 °F	220 °C	13.5 AWG	Spool, 1 lb (454 g)
Amerway Inc CWSAC WRMAP .015	Room Temperature	453.59 g	1 lbs	0.015 in	0.38 mm	Date of Manufacture	Rosin Mildly Activated (RMA)	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	60 Months	Wire Solder	428 °F	220 °C	27 AWG	Spool, 1 lb (454 g)
Amerway Inc CWSAC RA3% .032 1#	Room Temperature	453.59 g	1 lbs	0.032 in	0.81 mm	Date of Manufacture	Rosin Activated (RA)	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	60 Months	Wire Solder	428 °F	220 °C	20 AWG	Spool, 1 lb (454 g)
Amerway Inc CWSAC NC.015 1#	Room Temperature	453.59 g	1 lbs	0.015 in	0.38 mm	Date of Manufacture	No-Clean	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	60 Months	Wire Solder	428 °F	220 °C	27 AWG	Spool, 1 lb (454 g)
Amerway Inc CWSAC NCCW2 .032 1#	Room Temperature	453.59 g	1 lbs	0.032 in	0.81 mm	Date of Manufacture	No-Clean	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	60 Months	Wire Solder	428 °F	220 °C	20 AWG	Spool, 1 lb (454 g)
Amerway Inc CWSAC WRMAP3 .032	Room Temperature	453.59 g	1 lbs	0.032 in	0.81 mm	Date of Manufacture	Rosin Mildly Activated (RMA)	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	60 Months	Wire Solder	428 °F	220 °C	20 AWG	Spool, 1 lb (454 g)
Amerway Inc CWSAC WRAP .015	Room Temperature	453.59 g	1 lbs	0.015 in	0.38 mm	Date of Manufacture	Rosin Activated (RA)	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	60 Months	Wire Solder	428 °F	220 °C	27 AWG	Spool, 1 lb (454 g)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 114.98
		5	$ 105.52
		10	$ 97.78
		25	$ 90.08

Description

General part information

CWSAC Series

Lead Free Rosin Mildly Activated (RMA) Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) 27 AWG Spool, 1 lb (454 g)

Documents

Technical documentation and resources

No documents available
