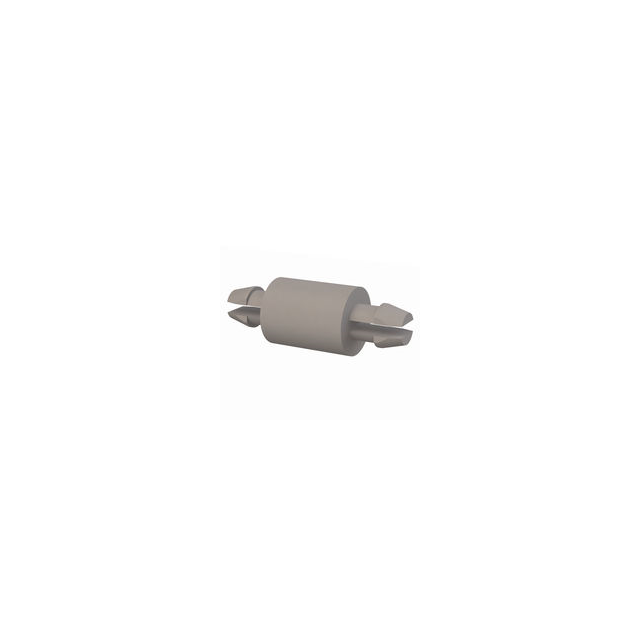

27MMP006

Active

Essentra Access Solutions

PCB SUPPORT, LOCKING, .098/.098

Deep-Dive with AI

Search across all available documentation for this part.

27MMP006

Active

Essentra Access Solutions

PCB SUPPORT, LOCKING, .098/.098

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	27MMP006

Between Board Height	6 mm
Between Board Height	0.236 in
Holding Type	Snap Lock
Length - Overall [x]	0.517 in
Length - Overall [x]	13.12 mm
Material	Nylon
Mounting Hole Diameter [diameter]	2.5 mm
Mounting Hole Diameter [diameter]	0.098 in
Mounting Panel Thickness	0.062 in
Mounting Panel Thickness	0.0625 in
Mounting Panel Thickness	1.57 mm
Mounting Type	Snap Lock
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

27MMP Series

Part	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Material	Mounting Type	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Between Board Height	Between Board Height	Holding Type	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height [z]	Between Board Height [z]	Length - Overall	Length - Overall
Essentra Access Solutions 27MMP006	0.0625 "	0.062 "	1.57 mm	Nylon	Snap Lock	0.062 in	0.0625 in	1.57 mm	6 mm	0.236 in	Snap Lock	0.517 in	13.12 mm	2.5 mm	0.098 in
Essentra Access Solutions 27MMP005	0.0625 "	0.062 "	1.57 mm	Nylon	Snap Lock	0.062 in	0.0625 in	1.57 mm	5 mm	0.197 in	Snap Lock	0.477 in	12.12 mm	2.5 mm	0.098 in
Essentra Access Solutions 27MMP003	0.0625 "	0.062 "	1.58 mm	Nylon	Snap Lock	0.062 in	0.0625 in	1.57 mm	3 mm	0.118 in	Snap Lock			2.5 mm	0.098 in	0.098 in	2.49 mm
Essentra Access Solutions 27MMP003A	0.0625 "	0.062 "	1.58 mm	Nylon	Snap Lock	0.062 in	0.0625 in	1.57 mm	3.5 mm	0.138 in	Snap Lock	0.398 "	10.12 mm	2.5 mm	0.098 in	0.098 in	2.49 mm
Essentra Access Solutions 27MMP008	0.0625 "	0.062 "	1.57 mm	Nylon	Snap Lock	0.062 in	0.0625 in	1.57 mm			Snap Lock	0.595 in	15.12 mm	2.5 mm	0.098 in			0.315 in	8 mm
Essentra Access Solutions 27MMP022	0.0625 "	0.062 "	1.58 mm	Nylon	Snap Lock	0.062 in	0.0625 in	1.57 mm	22 mm	0.866 in	Snap Lock			2.5 mm	0.098 in	0.098 in	2.49 mm
Essentra Access Solutions 27MMP010	0.0625 "	0.062 "	1.58 mm	Nylon	Snap Lock	0.062 in	0.0625 in	1.57 mm	10 mm	0.394 in	Snap Lock			2.5 mm	0.098 in	0.098 in	2.49 mm
Essentra Access Solutions 27MMP012	0.0625 "	0.062 "	1.57 mm	Nylon	Snap Lock	0.062 in	0.0625 in	1.57 mm	12 mm	0.472 in	Snap Lock	0.753 in	19.12 mm	2.5 mm	0.098 in
Essentra Access Solutions 27MMP016	0.0625 "	0.062 "	1.58 mm	Nylon	Snap Lock	0.062 in	0.0625 in	1.57 mm			Snap Lock			2.5 mm	0.098 in	0.098 in	2.49 mm	0.63 in	16 mm
Essentra Access Solutions 27MMP014	0.0625 "	0.062 "	1.57 mm	Nylon	Snap Lock	0.062 in	0.0625 in	1.57 mm	14 mm	0.551 in	Snap Lock			2.5 mm	0.098 in					21.12 mm	0.831 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.38
		10	$ 0.27
		100	$ 0.22
		1000	$ 0.19
		5000	$ 0.15

Description

General part information

27MMP Series

Board Support Snap Lock / Snap Lock Nylon 0.236" (6.00mm)

Documents

Technical documentation and resources

No documents available
