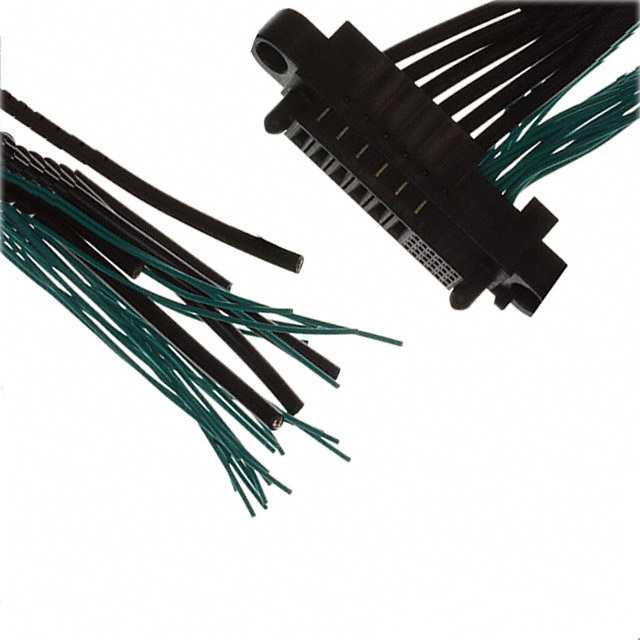

Specification	10080591-HAB0023LF

Cable Termination	Crimp
Color	Individual, Green, Black
Connector Type	Socket to Individual Wire Leads
Contact Finish	GXT™, Gold
Contact Finish Thickness	30 µin
Features	Flange
Length	3.28 ft
Number of Positions (Normal)	24
Number of Positions (Power)	6
Number of Positions (Total)	30
Number of Rows	4, 1
Number of Rows (string_set)	1, 4
Shielding	Unshielded
Usage	Power Module

10080591 Series

Part	Cable Termination	Color	Usage	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Number of Rows (string_set)	Number of Rows	Contact Finish	Connector Type	Shielding	Contact Finish Thickness	Length	Features
Amphenol ICC (FCI) 10080591-EAD0035LF	Crimp	Green Individual	Power Module	6	30	24	1 4	1 4	Gold GXT™	Socket to Individual Wire Leads	Unshielded	30 µin
Amphenol ICC (FCI) 10080591-HAB0023LF	Crimp	Black Green Individual	Power Module	6	30	24	1 4	1 4	Gold GXT™	Socket to Individual Wire Leads	Unshielded	30 µin	3.28 ft	Flange
Amphenol ICC (FCI) 10080591-EAD0051LF	Crimp	Green Individual	Power Module	6	30	24	1 4	1 4	Gold GXT™	Socket to Individual Wire Leads	Unshielded	30 µin
